X Band Security System Ground Surveillance Radar Detector For Maritime Targets

Model NO.

RS1500A
Installation Mode

Ground Steel Bracket Or Tripod
Application

Industry, Special Equipment
External Interfaces

Rj-45
Power Consumption

≤30W
Transport Package

Aviation Box Packaging
Specification

X Band
Trademark

OME Acceptable
Origin

China
HS Code

8526109090
Supply Ability

100pieces/Year
Customization

Available
Type

Sensor
Usage

Security Warning And Protection
Place of Origin

China
Brand Name

OEM
Certification

ISO
Minimum Order Quantity

10

X Band Security System Ground Surveillance Radar Detector For Maritime Targets

button button

Get Price Contact Now

Model NO.	RS1500A
Operating frequency	24GHz-24.25GHz
Swept bandwidth	30MHZ
Data rate	3HZ
Azimuth scan range	±45°
Pitch coverage	15°
Maximum number of objects that can be detected	100
Maximum Detection Range	1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance	≤5m
Target velocity range	0.5m/s~35m/s(1.8km/h~126km/h)

weight	≤5kg
Structural dimensions	350mm350mm55mm
Ingress protection	IP66

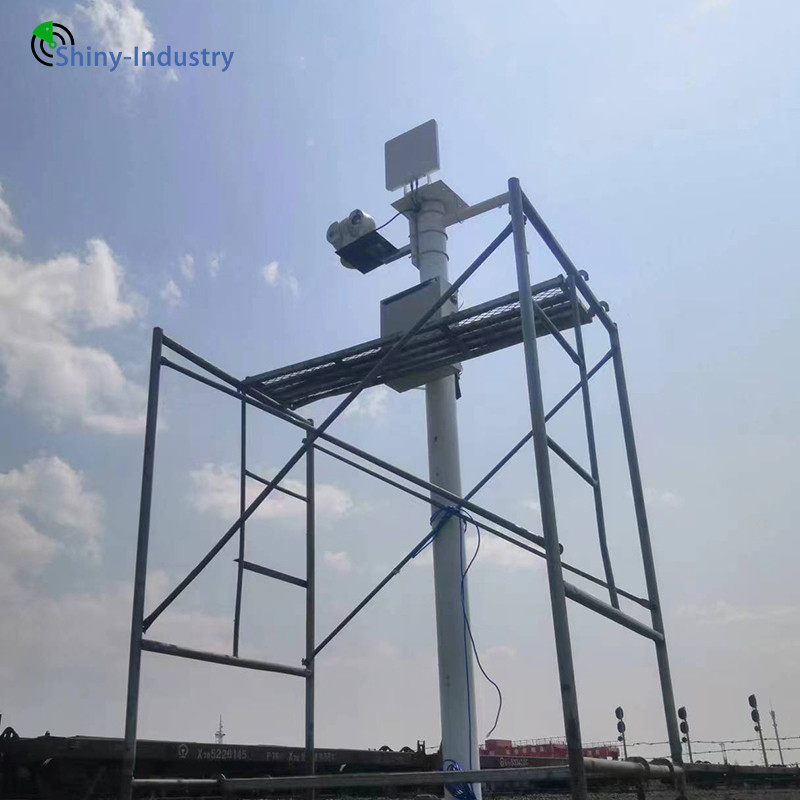

Radar working diagram X Band Security System Ground Surveillance Radar Detector For Maritime Targets 1

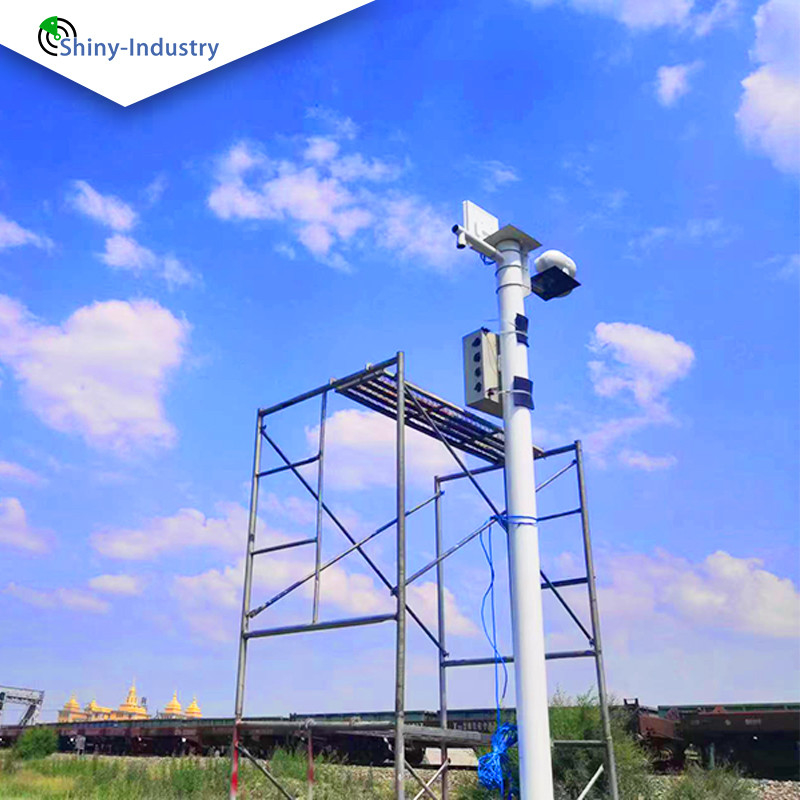

X Band Security System Ground Surveillance Radar Detector For Maritime Targets 3

RS1500A radar products are used to detect moving targets (such as people, vehicles, and boats) in the field of view, report their distance, azimuth and speed information, and support multiple targets to report at the same time. Based on the accurate information reported above, it can be used with cameras and other optoelectronic devices for tracking and positioning, identification and event recording.

Radar can play an active detection role in a variety of places, such as smart shipping, fishery protection, bridge collision prevention, ship flow monitoring, fishery management and other water vessel detection; security and maintenance of infrastructure such as substations, detention centers, and oil pipelines; Airport perimeter security, security along the railway, highway traffic control and other traffic facilities monitoring and control. The radar sensor has excellent performance, favorable price, and open interface, which is easy to match with cameras or infrared and other equipment.

Features

It is mainly used for border defense/security of key places, monitoring personnel, vehicles, ships and other targets in the area, and the main characteristics are as follows:

Multiple transceiver channels: 3 transmitters and 32 receivers Frequency Modulated Continuous Wave (FMCW) radar, phased array system.
High detection power: more than 1,000 meters for pedestrians and more than 2,000 meters for vehicles and boats.

High measurement accuracy: the angle measurement accuracy can reach 0.3°, and the ranging accuracy is 2 meters.
It supports multiple operating frequency bands to avoid co-channel interference.

It supports the demarcation of defense zones, which can effectively shield false alarms outside the core area.

Machine learning algorithms are used to support the identification and resolution of large and small targets, which is convenient for customers to screen targets in a targeted manner.
