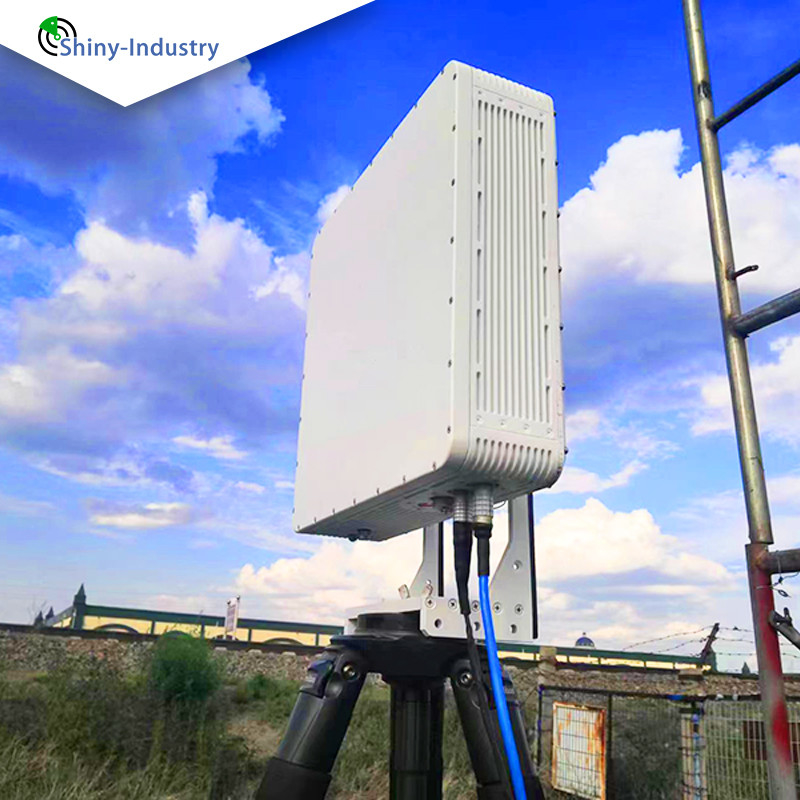

5-18km Long Range Defense Ground Surveillance Radar With Single Pulse Two Coordinate

5-18km Long Range Defense Ground Surveillance Radar With Single Pulse Two Coordinate

Products - Drone Detection Radar
  • HS Code
    8526109090
  • Target Velocity
    Up To 100 Km/h
  • Operating Temperature
    -20°C To +50°C
  • Dimensions
    300mm X 300mm X 200mm
  • Detection Range
    Up To 5 Km
  • Power Supply
    AC 100-240V, 50/60Hz
  • Power Consumption
    Less Than 50W
  • Detection Angle
    360°
  • Frequency Range
    X-band (8-12 GHz)
  • Weather Resistance
    IP65
  • Data Interface
    Ethernet, RS485, RS232
  • Weight
    Less Than 10kg
  • Detection Accuracy
    ±5 Meters
  • Mounting Options
    Pole, Wall Or Tripod
  • Target Size
    Small Drones (up To 1m)
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO
  • Minimum Order Quantity
    10

5-18km Long Range Defense Ground Surveillance Radar With Single Pulse Two Coordinate

  • 5-18km Long Range Defense Ground Surveillance Radar With Single Pulse Two Coordinate
Get Price Contact Now

Basic Information


Model NO. RS3000A
Operating frequency X Band
Work frequency point eleven
tracking mode TWS
Azimuth scan range Single-sided array phase sweeping ± 45°, by expanding the array, 180°,
         270° and 360° phase sweeping can be realized
Pitch coverage 7°
Maximum Detection Range 1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance ≤150m
Target velocity range 0.5m/s~50m/s(1.8km/h~180km/h)
Packaging & Deliver
weight ≤12kg
Structural dimensions 350mm*350mm*105mm

Ingress protection IP66

5-18km Long Range Defense Ground Surveillance Radar With Single Pulse Two Coordinate 0
Schematic diagram of the work

5-18km Long Range Defense Ground Surveillance Radar With Single Pulse Two Coordinate 1Schematic diagram of radar multi-array combination

5-18km Long Range Defense Ground Surveillance Radar With Single Pulse Two Coordinate 2
5-18km Long Range Defense Ground Surveillance Radar With Single Pulse Two Coordinate 3

5-18km Long Range Defense Ground Surveillance Radar With Single Pulse Two Coordinate 4





5-18km Long Range Defense Ground Surveillance Radar With Single Pulse Two Coordinate 5
5-18km Long Range Defense Ground Surveillance Radar With Single Pulse Two Coordinate 6

peculiarity


RS3000A radar is a multi-purpose, fully coherent, one-dimensional active phase-scanning, single-pulse two-coordinate radar, which is suitable for various complex terrain and sea conditions, and can realize the detection of walking people, driving vehicles, ships and other targets. After long-term practical application and optimization and improvement, the radar performance is reliable and stable, and it can meet the requirements of harsh environments such as high cold, humid heat, and salt spray.

Technological advantages

1) Adopt active phase scanning technology to realize azimuth electric sweeping. Compared with mechanical scanning radar, this radar has the technical advantages of high scanning rate, fast rate of changing beam direction, and high measurement accuracy for targets.

   2) Using advanced radar signal processing technology, the radar false alarm rate is low, the monitoring picture is clean, and the target can be accurately found and locked;

   3) The pitch beam covers a large angle, which can cover the ground, sea surface, valley, hillside, etc. at the same time, and can meet the detection of pedestrians, vehicles, boats and animals.

   4) It has the ability of flexible networking, and can flexibly network according to actual needs, so that one display and control terminal equipment can control multiple radar hosts at the same time;

   5) Each functional component adopts modular design, the interface is clear and simple, and the maintenance is convenient;

   6) The structure layout is exquisite, the volume is light and compact, which is easy to transport, carry and quickly erect;

   7) Adopt man-machine integration design, radar operation is simple and practical;

   8) All active components are designed with power consumption optimization, and the overall power consumption of the radar is small; It can be adapted to various power supplies;

   9) Adopt fanless thermal equilibrium technology, which is verified by simulation optimization and physical test of the whole machine, and is suitable for extreme environments such as high temperature and low cold;

   10) Adopt fully sealed design, the whole machine meets the requirements of IP66, has the functions of dustproof, waterproof, anti-salt spray, etc., has high reliability, and is suitable for Gobi, desert and marine environments.
