Low Speed Ad Hoc Individual Radio Station with 90Mbps Transmission Rate and Wireless Connectivity

Low Speed Ad Hoc Individual Radio Station with 90Mbps Transmission Rate and Wireless Connectivity

  • Model NO.
    ZTSG10102
  • Channel
    UHF
  • Receive Frequency
    542-698MHz
  • Transmission Rate
    90Mbps
  • Weight
    ≤ 0.5kg
  • Operation Temperature
    -20-60 ºC
  • Storage Temperature
    -40-70 ºC
  • Transport Package
    Aviation Box Packaging
  • Specification
    195mmx75mmx30mm
  • Trademark
    OME Acceptable
  • Origin
    China
  • HS Code
    8526109090
  • Supply Ability
    100pieces/Year
  • Customization
    Available
  • Type
    Wireless
  • Usage
    Security Warning And Protection
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO
  • Minimum Order Quantity
    10

Low Speed Ad Hoc Individual Radio Station with 90Mbps Transmission Rate and Wireless Connectivity

Basic information

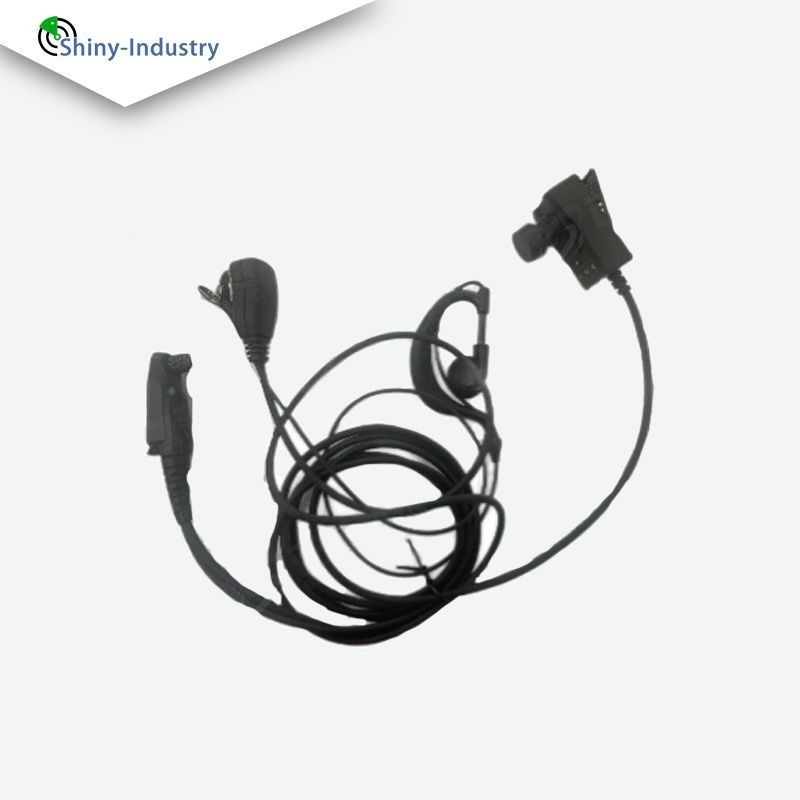

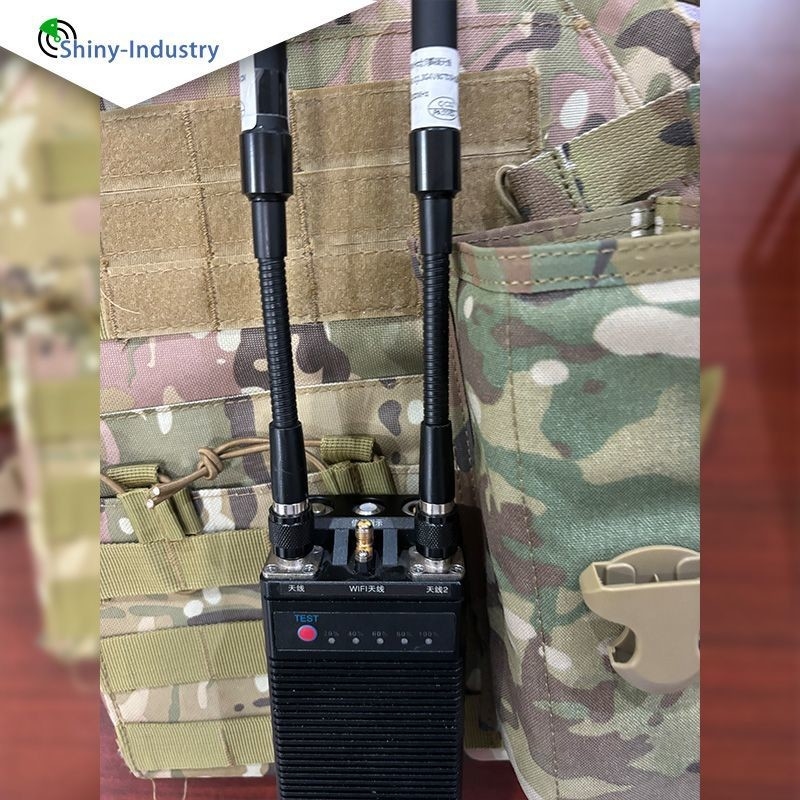

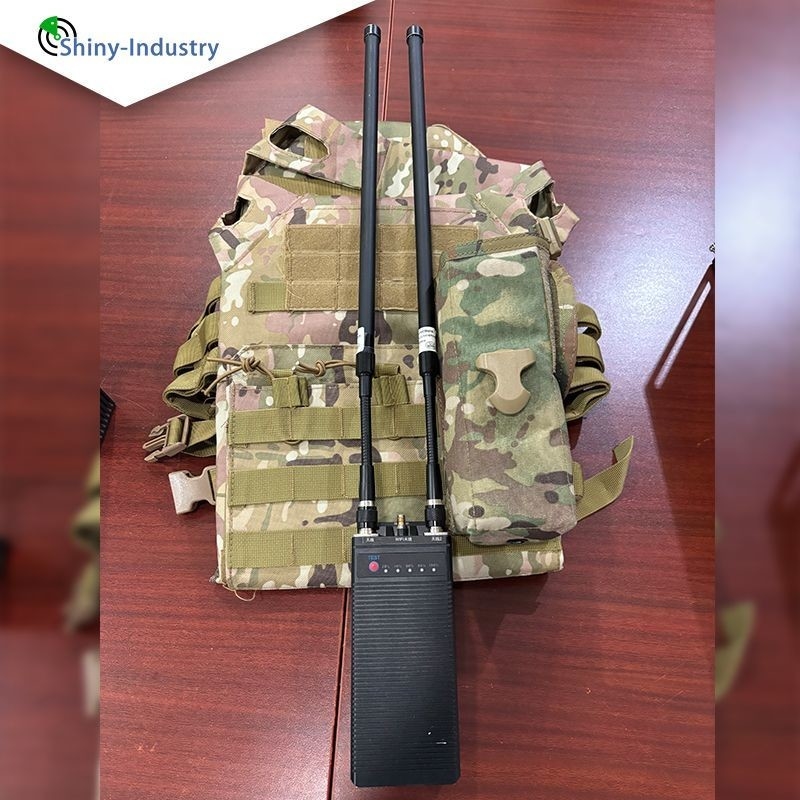

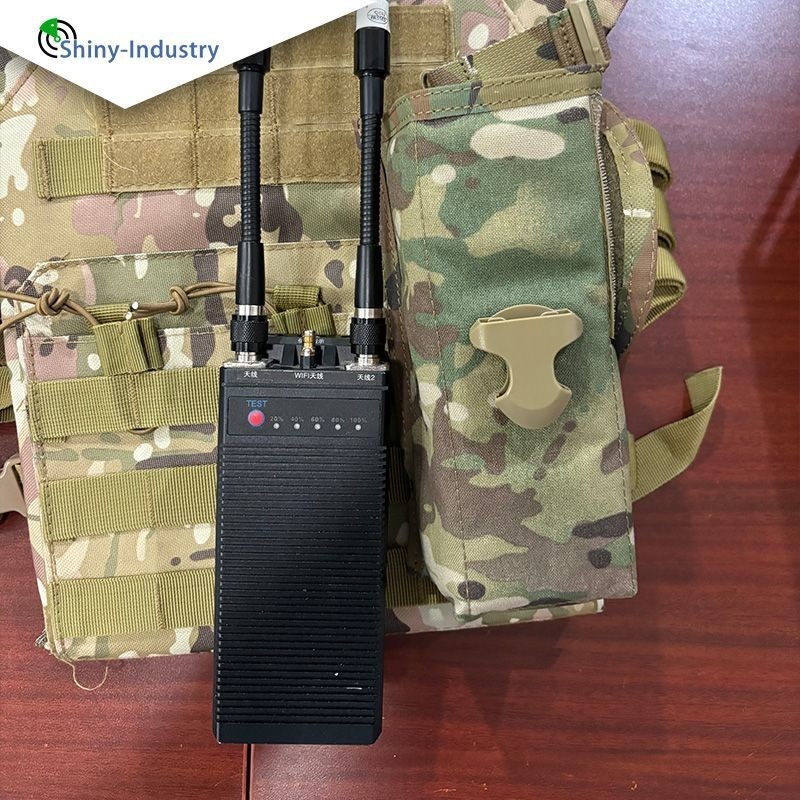

ZTSG10102 handheld individual soldier radio is a single handheld communication equipment developed by our company for emergency industry and patrol reconnaissance. Supports the multi-network convergence of public networks, private networks, AD hoc networks, and digital clusters (supported by cellular networks). With the advantages of dynamic networking, the system will automatically select the optimal path to complete networking communication in complex occlusion environment; Strong self-healing ability, support dynamic routing, any node damage or exit will not cause the system crash. It supports AES128/256 encryption, vital data transmission, WIFI hotspot, Bluetooth, and wired network interface, and voice, video, message, location, and data interaction through the human-machine interface. It can be relayed by vehicles, multi-rotor UAVs, fixed-wing UAVs, tethered UAVs and tower base stations. Bluetooth can be connected to the bracelet, and wired connected mics, headphones and cameras are optional.

Low Speed Ad Hoc Individual Radio Station with 90Mbps Transmission Rate and Wireless Connectivity 0
argument

System parameter
Transmission distance
(AD hoc network)
≥2km(ground, 1.5m antenna height on both sides)

>50km(to air, ground antenna height 1.5m)
Transmission delay ≤10ms
Hotspot access Video greater than 40 meters, data greater than 50 meters
Data encryption AES128/256
Multi-network convergence Supports the multi-network convergence of public networks, private networks, AD hoc networks, and digital clusters (supported by cellular networks)
Digital-analog integration DMR digital analog two-in-one, support standard defined voice and data services, as well as encryption methods
Equipment weight 1.3kg(including antenna)
Overall dimension <48mm*240mm*73mm(including connectors)
Power supply Lithium battery powered, average power consumption of 12 watts
Endurance time >6 hours, online
Transmitting power ≥34dBm



Low Speed Ad Hoc Individual Radio Station with 90Mbps Transmission Rate and Wireless Connectivity 1
Home screen

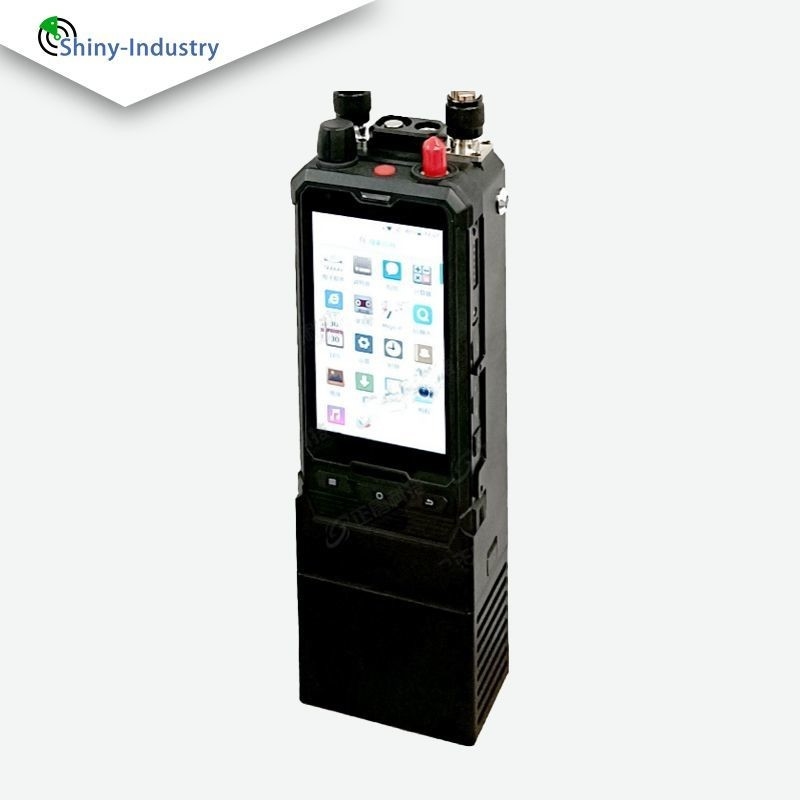

Main screen size 4.0 inches, full touch
Touch screen Capacitive screen, Corning IV glass, 5 point touch, glove support, gesture operation function
Resolution Resolution (480*800)TFT LCM

Support frequency
Public private network 4G/5G
Private network frequency band 1.4GHz (other frequencies can be customized)

Data parameter
Data bandwidth Up to 70Mbps
Network capacity ≥48

connector
Antenna interface WIFI:SMA ;   Networking: TNC
Ethernet interface 4-core waterproof navigation jack

Environmental parameter
Operating temperature -20ºC ~ +60ºC
Storage temperature -40ºC to +80ºC
Ambient humidity < 95%, non-condensing
