Security Warning Air Defence Radar Accessories Turntable Adapter

Highlight

Air Defence Radar Turntable Adapter
,
Air Defence Radar Accessories
Model NO.

RS8000As
Installation Mode

Ground Steel Bracket Or Tripod
Application

Industry, Special Equipment
External Interfaces

Rj-45
Power Consumption

≤30W
Communication Protocol

TCP/IP
Transport Package

Aviation Box Packaging
Specification

X Band
Trademark

OME Acceptable
Origin

China
HS Code

8526109090
Supply Ability

100pieces/Year
Customization

Available
Type

Sensor
Usage

Security Warning And Protection
Place of Origin

China
Brand Name

OEM
Certification

ISO
Minimum Order Quantity

10

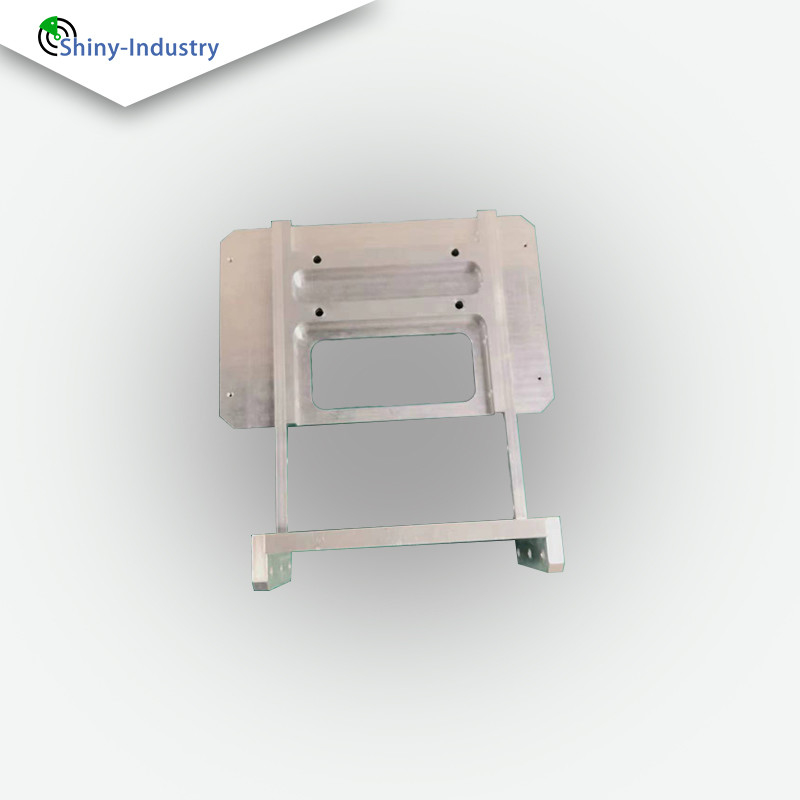

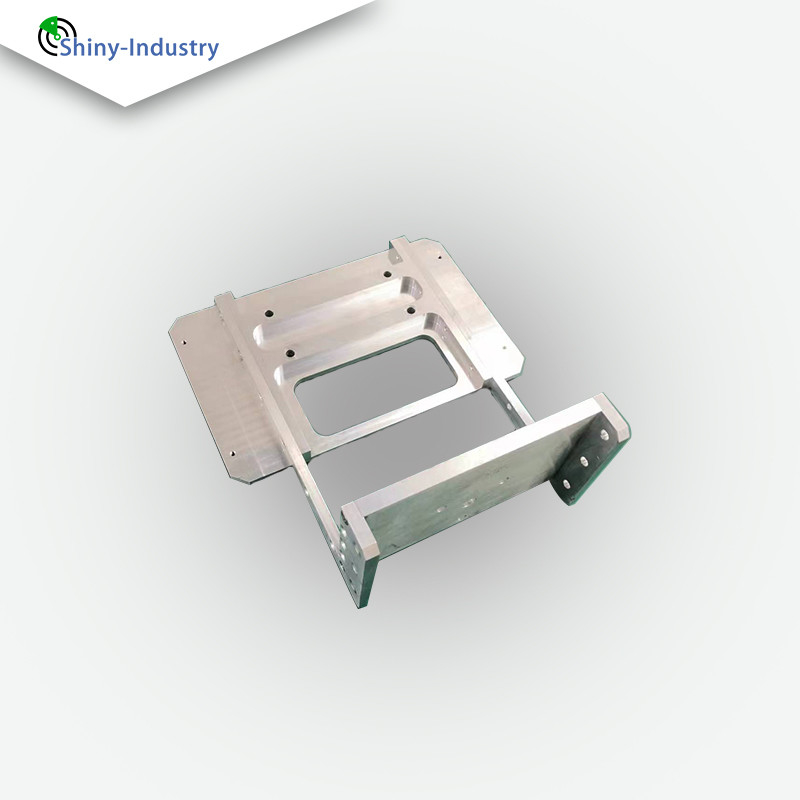

Security Warning Air Defence Radar Accessories Turntable Adapter

Name: Security Warning Air Defence Radar Accessories Turntable Adapter
Brand: Shiny-Control Technology Develop (Beijing) Co., Ltd.
Availability: InStock

button button

Get Price Contact Now

This is the installation accessory for the radar, which needs to be used in conjunction with the RS8000A radar
Security Warning Air Defence Radar Accessories Turntable Adapter 0

Model NO.	RS8000A
Operating frequency	X Band
Work frequency point	eleven
tracking mode	TWS
Azimuth scan range	8) ± 45°, and the scanning range can be set arbitrarily within the range of ±45° Machine scanning range: 360° continuous scanning in azimuth
Pitch coverage	7°
Target velocity range	0.5m/s~50m/s(1.8km/h~180km/h)
Accuracy error	The distance is ≤5m, the azimuth ≤ 0.4°, and the speed ≤ 0.1m/s
Reliability and serviceability	MTBF ≥ 5000h,MTTR ≤ 0.5h

weight	≤13kg
Structural dimensions	475mm350mm110mm
Ingress protection	IP66

Schematic diagram of the work

Schematic diagram of radar multi-array combination

Security Warning Air Defence Radar Accessories Turntable Adapter 5

Security Warning Air Defence Radar Accessories Turntable Adapter 6

RS8000A radar is a multi-purpose, fully coherent, one-dimensional active phase-scanning, single-pulse two-coordinate radar, which is suitable for various complex terrain and sea conditions, and can realize the detection of walking people, driving vehicles, ships and other targets. After long-term practical application and optimization and improvement, the radar performance is reliable and stable, and it can meet the requirements of harsh environments such as high cold, humid heat, and salt spray.

Technological advantages

1) Adopt active phase scanning technology to realize azimuth electric sweeping. Compared with mechanical scanning radar, this radar has the technical advantages of high scanning rate, fast rate of changing beam direction, and high measurement accuracy for targets.

2) Using advanced radar signal processing technology, the radar false alarm rate is low, the monitoring picture is clean, and the target can be accurately found and locked;

3) The pitch beam covers a large angle, which can cover the ground, sea surface, valley, hillside, etc. at the same time, and can meet the detection of pedestrians, vehicles, boats and animals.

4) It has the ability of flexible networking, and can flexibly network according to actual needs, so that one display and control terminal equipment can control multiple radar hosts at the same time;

5) Each functional component adopts modular design, the interface is clear and simple, and the maintenance is convenient;

6) The structure layout is exquisite, the volume is light and compact, which is easy to transport, carry and quickly erect;

7) Adopt man-machine integration design, radar operation is simple and practical;

8) All active components are designed with power consumption optimization, and the overall power consumption of the radar is small; It can be adapted to various power supplies;

9) Adopt fanless thermal equilibrium technology, which is verified by simulation optimization and physical test of the whole machine, and is suitable for extreme environments such as high temperature and low cold;

10) Adopt fully sealed design, the whole machine meets the requirements of IP66, has the functions of dustproof, waterproof, anti-salt spray, etc., has high reliability, and is suitable for Gobi, desert and marine environments.

The radar is mainly used for border defense/important site vigilance, monitoring personnel, vehicles, ships and other targets in the area, and its main functions are as follows:

It can complete the functions of searching and tracking for walking people, moving vehicles, boats and other targets;

It has the functions of online detection, fault diagnosis, fault location, temperature monitoring, etc.;

It has functions such as self-positioning and orientation

It has the functions of automatic recording and playback of working status;

It can provide guidance information for the upper-level system and have the ability to work together;

With networking function, it can realize the coordinated work of multiple radars.
