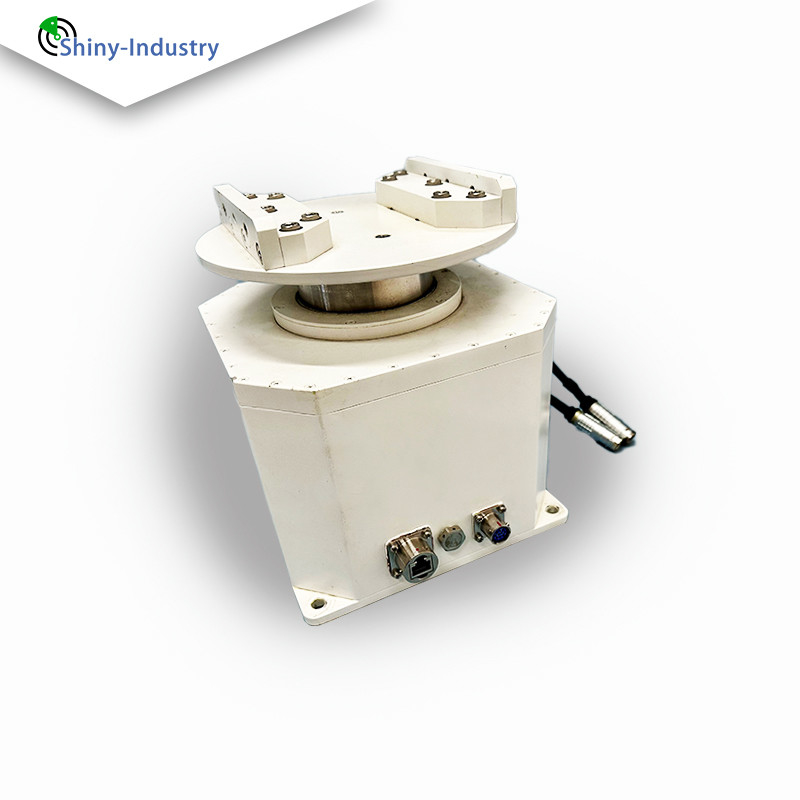

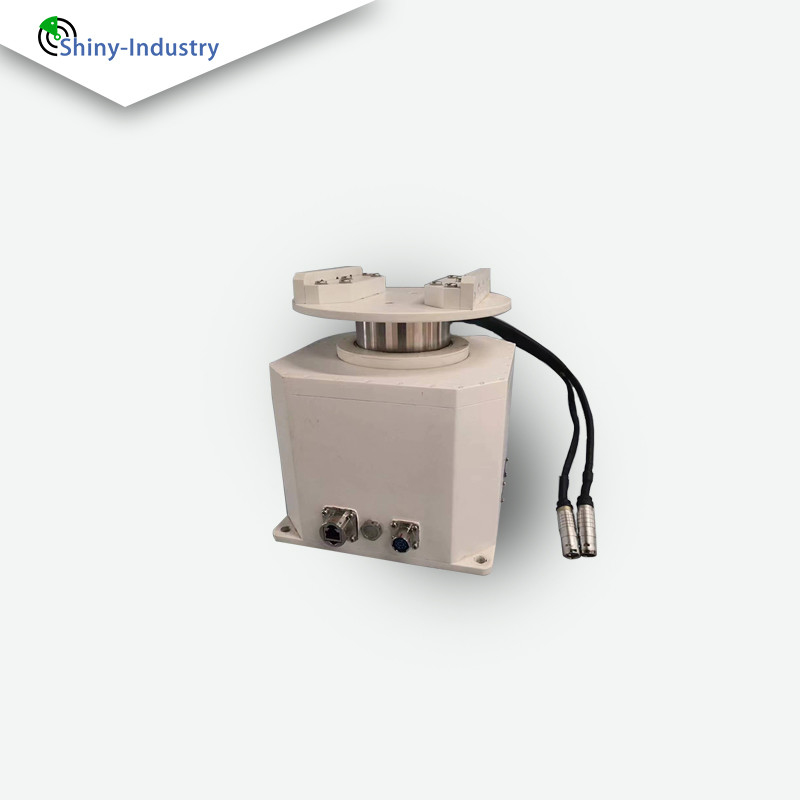

Directional One-Dimensional Turntable/Radar Sensor with Ground Steel Bracket or Tripod Installation Capability
| name | One dimensional turntable for azimuth, achieving 360 ° rotation of radar azimuth. |
| Speed | Maximum horizontal speed of 180 °/s, adjustable speed in multiple gears |
| acceleration | No special requirements |
| Rotation angle | Continuous rotation from 0 to 360 degrees horizontally |
| Zero position | Software configurable, automatically saves, and can remember new zero positions when powered on again |
| communication protocol | Pelco-D |
| Baud rate | 115200 (negotiable) |
| communication interface | RS422 |
| Power on self-test | Power on self return to zero |
| Data reporting week | 10ms (negotiable) |
| Supply Voltage | DC28V power supply |
| operation temperature | -40 ºC~+60 ºC, 90% ± 3%, non condensing |
| storage temperature | -30ºC~+70ºC |
| protection grade | IP66 |
| Installation environment | stationary use |
| service life | Continuous rotation at a speed of 150 °/s, maintenance free for 1.5 years of continuous use |
| load | 18kg |
| Self weight of turntable | ≤10kg |
| External dimensions | ≤215(mm)*215(mm)*245(mm) |
