One Dimensional Active Phase Air Surveillance Radar For Long Range Detection And Tracking

Highlight

Long Range Detection Surveillance Radar
,
Active Phase Air Surveillance Radar
Model NO.

RS3000A
Installation Mode

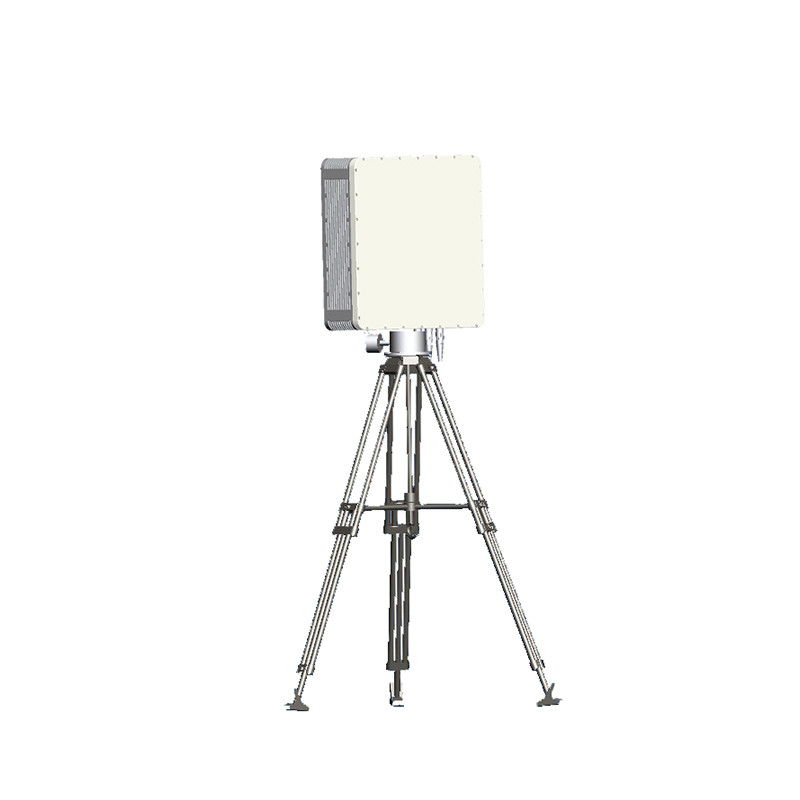

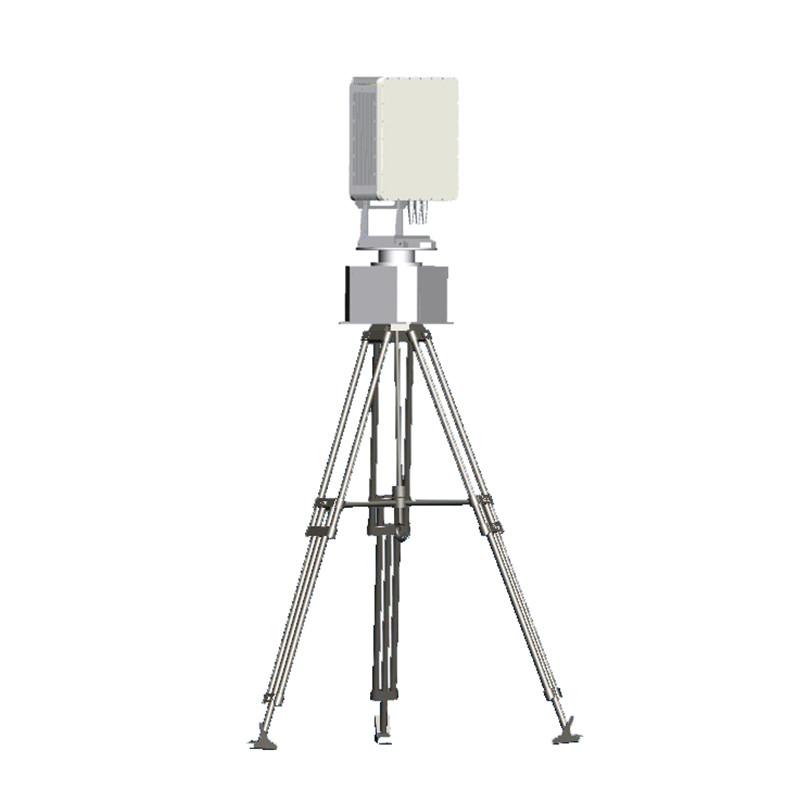

Ground Steel Bracket Or Tripod
Application

Industry, Special Equipment
External Interfaces

Rj-45
Power Consumption

≤30W
Communication Protocol

TCP/IP
Transport Package

Aviation Box Packaging
Specification

X Band
Trademark

OME Acceptable
Origin

China
HS Code

8526109090
Supply Ability

100pieces/Year
Customization

Available
Type

Sensor
Usage

Security Warning And Protection
Place of Origin

China
Brand Name

OEM
Certification

ISO
Minimum Order Quantity

10

One Dimensional Active Phase Air Surveillance Radar For Long Range Detection And Tracking

Name: One Dimensional Active Phase Air Surveillance Radar For Long Range Detection And Tracking
Brand: Shiny-Control Technology Develop (Beijing) Co., Ltd.
Availability: InStock

button button

Get Price Contact Now

Ground Steel Bracket or Tripod Installation Mode Precision Surveillance Radar for Industry Long Range Detection and Tracking

RS3000A This radar is a versatile, fully coherent, one-dimensional active phase-scanning, single-pulse two-coordinate marvel, perfectly crafted for a variety of challenging terrains and sea conditions. Engineered for excellence, it effortlessly detects pedestrians, moving vehicles, ships, and a diverse array of targets. Through extensive application and continuous optimization, the radar showcases unwavering reliability and stability, thriving in extreme environments including high altitudes, humid heat, and salt-laden air.

Model NO.	RS3000A
Operating frequency	X Band
Work frequency point	eleven
tracking mode	TWS
Azimuth scan range	Single-sided array phase sweeping ± 45°, by expanding the array, 180°, 270° and 360° phase sweeping can be realized
Pitch coverage	7°
Maximum Detection Range	1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance	≤150m
Target velocity range	0.5m/s~50m/s(1.8km/h~180km/h)

weight	≤12kg
Structural dimensions	350mm×350mm×105mm
Ingress protection	IP66

Schematic Diagram of the Work

Schematic Diagram of Radar Multi-Array Combination

One Dimensional Active Phase Air Surveillance Radar For Long Range Detection And Tracking 4

One Dimensional Active Phase Air Surveillance Radar For Long Range Detection And Tracking 5

Technological Advantages

1) Employing cutting-edge active phase scanning technology, this radar achieves azimuthal electric sweeping, offering a technological edge over traditional mechanical scanning radars. The benefits include a high scanning rate, rapid beam direction adjustments, and unparalleled target measurement accuracy.

2) With state-of-the-art radar signal processing technology, enjoy a remarkably low false alarm rate and a crystal-clear monitoring display, ensuring precise target detection and locking capabilities.

3) The pitch beam covers an expansive angle, simultaneously embracing ground, sea surface, valleys, and hillsides, making it adept at detecting pedestrians, vehicles, boats, and even animals.

4) Designed for flexible networking, it can seamlessly connect based on specific requirements, allowing a single display and control terminal to efficiently manage multiple radar units.

5) Each functional component boasts a modular design, offering a clear and user-friendly interface that simplifies maintenance.

6) Crafted with a keen eye for detail, its structure is both light and compact, ensuring ease of transport, portability, and swift deployment.

7) The man-machine integration design simplifies radar operation, making it intuitive and user-friendly.

8) All active components are meticulously designed for optimal power efficiency, resulting in low overall power consumption, adaptable to various power sources.

9) Utilizing fanless thermal equilibrium technology, rigorously validated through simulation and physical testing, it remains operational in the harshest environments, from scorching heat to frigid cold.

10) With a fully sealed design meeting stringent IP66 standards, it offers robust dustproof, waterproof, and anti-salt spray protection, making it ideal for Gobi, desert, and maritime settings.

Primarily designed for border defense and critical site security, this radar excels in monitoring personnel, vehicles, ships, and other targets within its scope. Its principal functions include:

Executing search and tracking operations for pedestrians, moving vehicles, boats, and a myriad of targets with precision and efficiency.

Equipped with online detection, fault diagnosis, fault localization, and temperature monitoring capabilities.

Offers self-positioning and orientation features to enhance operational accuracy.

Facilitates automatic recording and playback of operational status for comprehensive analysis and review.

Provides guidance information for integration with upper-level systems, enabling seamless collaboration.

With advanced networking capabilities, it ensures coordinated operations among multiple radars, enhancing overall efficiency.
