Basic Information

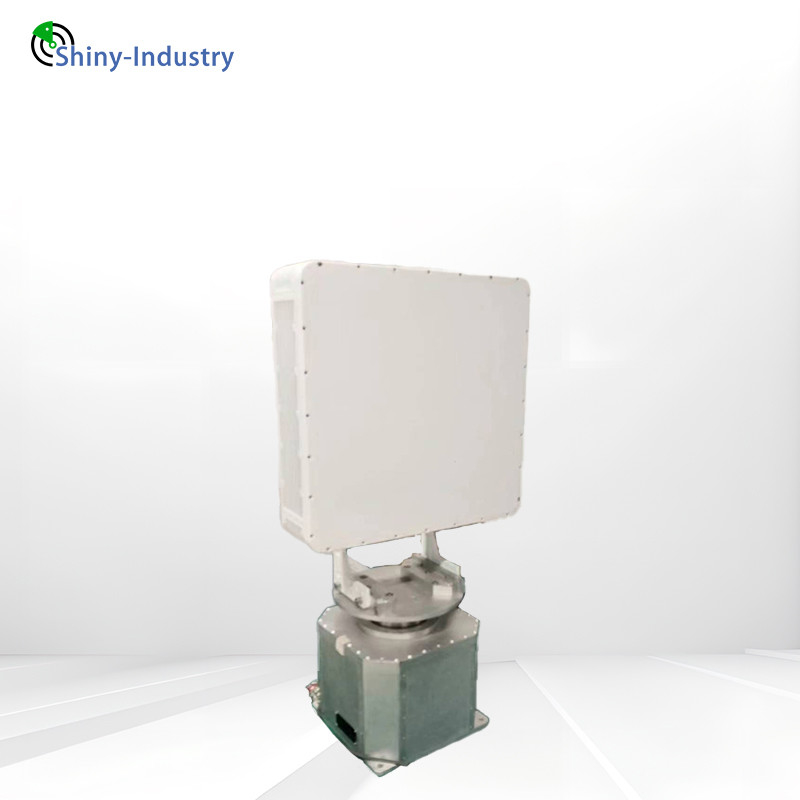

RS3000A This radar is truly a marvel of modern technology, designed to be multi-purpose, fully coherent, and one-dimensional active phase-scanning. Its single-pulse two-coordinate capability ensures excellence in diverse settings, be it complex terrains or the high seas. Engineered to effortlessly detect and monitor a spectrum of targets like pedestrians, vehicles, and vessels, it stands out for its robustness and reliability. Its performance remains unwavering under challenging conditions such as intense cold, high humidity, and corrosive salt spray, thanks to rigorous practical testing and continuous enhancements.
| Model NO. |
RS3000A |
| Operating frequency |
X Band |
| Work frequency point |
eleven |
| tracking mode |
TWS |
| Azimuth scan range |
Single-sided array phase sweeping ± 45°, by expanding the array, 180°,
270° and 360° phase sweeping can be realized |
| Pitch coverage |
7° |
| Maximum Detection Range |
1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships) |
| Minimum travel distance |
≤150m |
| Target velocity range |
0.5m/s~50m/s(1.8km/h~180km/h) |
Packaging & Deliver
| weight |
≤12kg |
| Structural dimensions |
350mm*350mm*105mm
|
| Ingress protection |
IP66 |
Schematic Diagram of the Work
Schematic Diagram of Radar Multi-Array Combination
peculiarity
Technological Advantages
1) Utilizing cutting-edge active phase scanning technology, this radar achieves azimuth electric sweeping. Unlike traditional mechanical scanning radars, it boasts a superior scanning speed, rapid beam direction alterations, and precise measurement accuracy, setting a new standard in radar technology.
2) With its state-of-the-art radar signal processing technology, enjoy a remarkably low false alarm rate and a crystal-clear monitoring display that expertly identifies and locks onto targets with precision.
3) Its pitch beam extends over a vast angle, allowing simultaneous coverage of diverse environments such as ground, sea, valleys, and hillsides, effectively detecting pedestrians, vehicles, boats, and even animals.
4) Offers impressive flexible networking capabilities, effortlessly adapting to your specific needs, enabling one display and control terminal to manage multiple radar hosts simultaneously.
5) Each component is crafted with a modular design, ensuring interfaces are clear and user-friendly, making maintenance a breeze.
6) Ingeniously structured, its light and compact design facilitates easy transport and rapid deployment.
7) Designed with a human-machine integration approach, operations are intuitive and user-friendly.
8) Every active component undergoes power consumption optimization, resulting in minimal overall radar power needs, compatible with various power sources.
9) Incorporates fanless thermal equilibrium technology, meticulously verified through simulation and physical testing, ensuring adaptability in harsh temperatures.
10) The radar's fully-sealed design meets stringent IP66 standards, offering excellent dust, water, and salt spray resistance, making it ideal for Gobi, desert, and marine environments.
Functions
Predominantly utilized for border defense and the vigilance of critical sites, this radar expertly monitors personnel, vehicles, ships, and more within its scope, offering these essential functionalities:
Efficiently conducts searches and tracks pedestrians, moving vehicles, boats, and an array of other targets with precision.
Features comprehensive online detection, fault diagnosis, fault location, and temperature monitoring functions.
Equipped with self-positioning and orientation capabilities.
Supports automatic recording and playback of operational status, ensuring seamless functionality.
Capable of providing crucial guidance information for upper-level systems, enhancing collaborative operations.
With its networking prowess, it enables synchronized operations across multiple radars, ensuring coordinated efforts.
