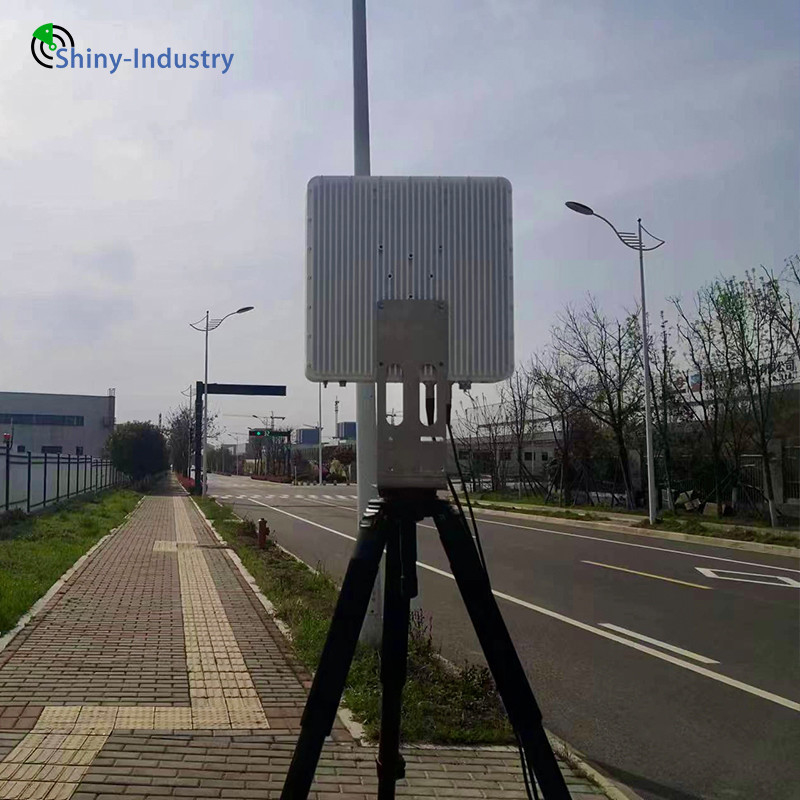

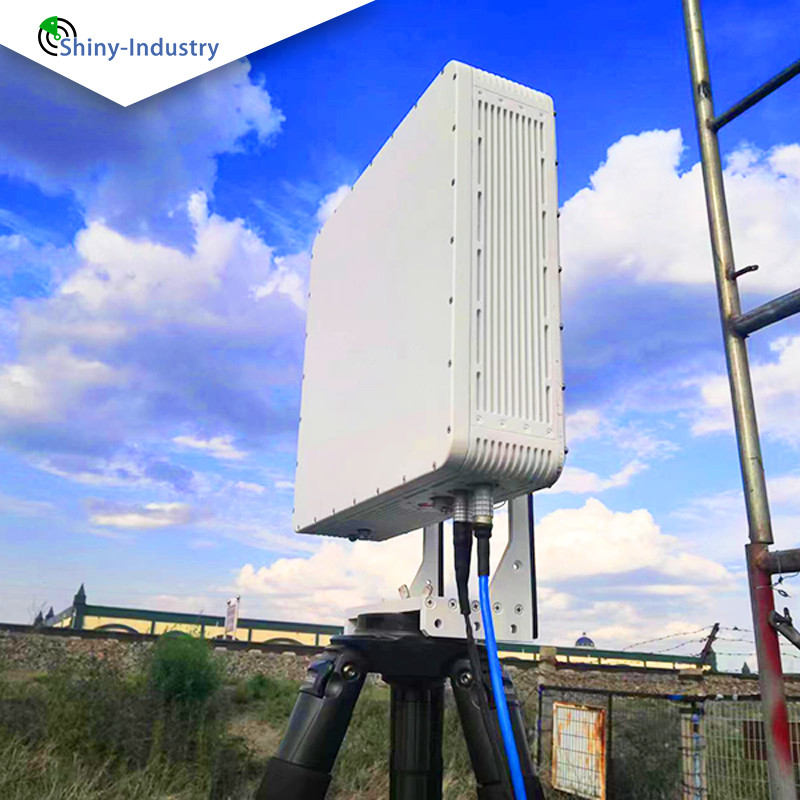

Special Equipment Enhanced Security and Detection with Multi-Coordinate Surveillance Radar featuring Rj-45 Interfaces

Model NO.

RS3000A
Installation Mode

Ground Steel Bracket Or Tripod
Application

Industry, Special Equipment
External Interfaces

Rj-45
Power Consumption

≤30W
Communication Protocol

TCP/IP
Transport Package

Aviation Box Packaging
Specification

X Band
Trademark

OME Acceptable
Origin

China
HS Code

8526109090
Supply Ability

100pieces/Year
Customization

Available
Type

Sensor
Usage

Security Warning And Protection
Place of Origin

China
Brand Name

OEM
Certification

ISO
Minimum Order Quantity

10

Special Equipment Enhanced Security and Detection with Multi-Coordinate Surveillance Radar featuring Rj-45 Interfaces

button button

Get Price Contact Now

Model NO.	RS3000A
Operating frequency	X Band
Work frequency point	eleven
tracking mode	TWS
Azimuth scan range	Single-sided array phase sweeping ± 45°, by expanding the array, 180°, 270° and 360° phase sweeping can be realized
Pitch coverage	7°
Maximum Detection Range	1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance	≤150m
Target velocity range	0.5m/s~50m/s(1.8km/h~180km/h)

weight	≤12kg
Structural dimensions	350mm350mm105mm
Ingress protection	IP66

Schematic diagram of the work

Schematic diagram of radar multi-array combination

Special Equipment Enhanced Security and Detection with Multi-Coordinate Surveillance Radar featuring Rj-45 Interfaces 4

Special Equipment Enhanced Security and Detection with Multi-Coordinate Surveillance Radar featuring Rj-45 Interfaces 5

RS3000A The RS3000A radar is a versatile, high-performance, fully coherent, one-dimensional active phase-scanning, single-pulse two-coordinate marvel, expertly designed for an array of challenging terrains and maritime conditions. This cutting-edge radar excels in detecting moving individuals, vehicles, vessels, and more. Through extensive real-world application, optimization, and refinement, it guarantees steadfast, reliable performance, perfectly suited to demanding environments such as extreme cold, humid heat, and corrosive salt spray.

Technological Advantages

1) Embracing advanced active phase scanning technology, the radar achieves seamless azimuthal electronic sweeping. This innovation delivers a significantly higher scanning rate, unparalleled speed in altering beam direction, and exceptional target measurement precision, far surpassing traditional mechanical scanning radars.

2) Leveraging cutting-edge radar signal processing technology, this system boasts an impressively low false alarm rate, ensuring a pristine monitoring display. It precisely identifies and locks onto targets with astounding accuracy.

3) With an extensive pitch beam angle, the radar effortlessly covers diverse landscapes—ground, sea surface, valleys, hillsides—enabling comprehensive detection of pedestrians, vehicles, vessels, and even wildlife.

4) Featuring robust flexible networking capabilities, the system adapts to real-world needs, allowing a single display and control terminal to seamlessly manage multiple radar hosts concurrently.

5) Each component is crafted with a modular design, promoting clarity and simplicity in interfaces, which translates to a breeze in maintenance.

6) The radar's elegant and compact design ensures lightweight transportation, ease of carriage, and swift, hassle-free setup.

7) Engineered with an intuitive man-machine integration design, radar operation is both straightforward and efficient.

8) All active components are optimized for minimal power consumption, ensuring the radar's adaptability to various power supply scenarios.

9) Incorporating a fanless thermal equilibrium technology, verified through rigorous simulation optimization and comprehensive physical testing, the radar thrives in extreme climates, from sweltering heat to freezing cold.

10) Designed to be fully sealed, the radar meets the stringent IP66 standards, offering robust dustproof, waterproof, and anti-salt spray capabilities, making it highly reliable for Gobi, desert, and marine environments.

Primarily engineered for border defense and safeguarding vital locations, the radar excels in monitoring personnel, vehicles, ships, and other crucial targets within its surveillance zone. Its capabilities include:

Adeptly performing search and tracking functions for individuals, vehicles, boats, and a host of other targets.

Empowered with online detection, fault diagnosis, fault location, and temperature monitoring functionalities, ensuring optimal operational integrity.

Boasting self-positioning and orientation functionalities for enhanced situational awareness.

Equipped with capabilities for automatic recording and playback of its operational status, providing comprehensive activity logs.

It offers guidance insights for upper-level systems, enhancing collaborative operations.

Featuring comprehensive networking capabilities, enabling synchronized operations across multiple radars for cohesive functionality.
