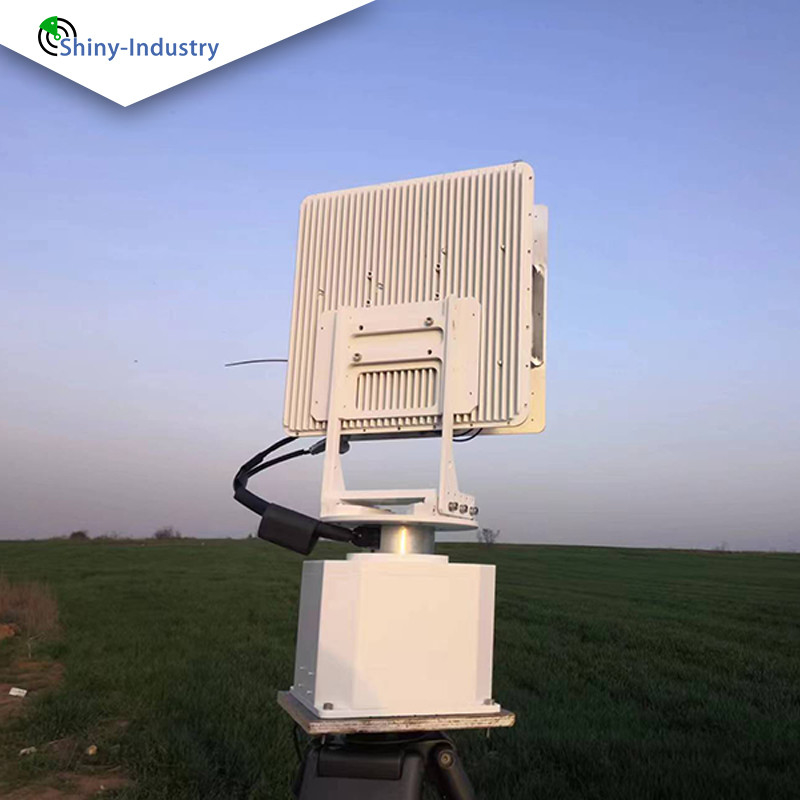

External Interfaces Rj-45 Customization for Advanced Surveillance Radar in Drone Detection and Monitoring Solutions

Model NO.

RS3000A
Installation Mode

Ground Steel Bracket Or Tripod
Application

Industry, Special Equipment
External Interfaces

Rj-45
Power Consumption

≤30W
Communication Protocol

TCP/IP
Transport Package

Aviation Box Packaging
Specification

X Band
Trademark

OME Acceptable
Origin

China
HS Code

8526109090
Supply Ability

100pieces/Year
Customization

Available
Type

Sensor
Usage

Security Warning And Protection
Place of Origin

China
Brand Name

OEM
Certification

ISO
Minimum Order Quantity

10

External Interfaces Rj-45 Customization for Advanced Surveillance Radar in Drone Detection and Monitoring Solutions

button button

Get Price Contact Now

Model NO.	RS3000A
Operating frequency	X Band
Work frequency point	eleven
tracking mode	TWS
Azimuth scan range	Single-sided array phase sweeping ± 45°, by expanding the array, 180°, 270° and 360° phase sweeping can be realized
Pitch coverage	7°
Maximum Detection Range	1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance	≤150m
Target velocity range	0.5m/s~50m/s(1.8km/h~180km/h)

weight	≤12kg
Structural dimensions	350mm350mm105mm
Ingress protection	IP66

Schematic Diagram of Work

Schematic Diagram of Radar Multi-Array Combination

External Interfaces Rj-45 Customization for Advanced Surveillance Radar in Drone Detection and Monitoring Solutions 4

External Interfaces Rj-45 Customization for Advanced Surveillance Radar in Drone Detection and Monitoring Solutions 5

RS3000A Our radar is a versatile, fully coherent, one-dimensional active phase-scanning, single-pulse two-coordinate radar expertly crafted to operate seamlessly across diverse and challenging terrains and maritime conditions. It excels in the detection of a wide array of targets, including pedestrians, vehicles, and vessels. Through extensive field application, coupled with ongoing optimization, its performance remains consistently reliable and stable, even in demanding environments characterized by extreme cold, high humidity, heat, and salt spray.

Technological Advantages

1) Leveraging cutting-edge active phase scanning technology, it achieves azimuth electric sweeping. This innovation surpasses traditional mechanical scanning radars, delivering superior technical advantages such as heightened scanning rates, rapid beam direction adjustments, and exceptional target measurement accuracy.

2) With state-of-the-art radar signal processing technology, this radar maintains a remarkably low false alarm rate, ensuring a clear monitoring display that precisely identifies and locks onto targets.

3) Its pitch beam spans a wide angle, effectively covering ground, sea surfaces, valleys, hillsides, and more, thus adeptly detecting pedestrians, vehicles, vessels, and wildlife.

4) Boasting flexible networking capabilities, it can be seamlessly integrated into networks tailored to specific needs, enabling a single display and control terminal to manage multiple radar units simultaneously.

5) Each component features a modular design with clear, straightforward interfaces, simplifying maintenance and enhancing usability.

6) Ingeniously structured layout ensures a lightweight and compact volume, facilitating effortless transportation, handling, and rapid deployment.

7) With a user-centric man-machine integration design, this radar offers intuitive and practical operation.

8) All active components are engineered with power efficiency in mind, resulting in minimal overall power consumption, adaptable to various power sources.

9) Utilizing fanless thermal equilibrium technology, thoroughly vetted through simulation and physical testing, this radar is adept for extreme high and low-temperature environments.

10) Its fully sealed design meets IP66 standards, offering robust protection against dust, water, and salt spray, making it ideal for harsh conditions such as Gobi deserts, arid expanses, and marine settings.

Primarily deployed for border defense and the vigilant monitoring of critical locations, this radar excels at tracking personnel, vehicles, vessels, and other area-specific targets. Its core functionalities include:

Capable of executing search and track functions for pedestrians, moving vehicles, boats, and a diverse range of targets.

Equipped with online detection, fault diagnosis, fault localization, and temperature monitoring capabilities.

Incorporates self-positioning and orientation functionalities.

Offers automatic recording and playback of operational status.

Provides guidance information for upper-level systems along with collaborative working capabilities.

With a powerful networking function, it facilitates the coordinated operation of multiple radars effectively.
