Long Range Slow Targets Surveillance Radar Full Coverage With Rj45 External Interfaces

Model NO.

RS3000A
Installation Mode

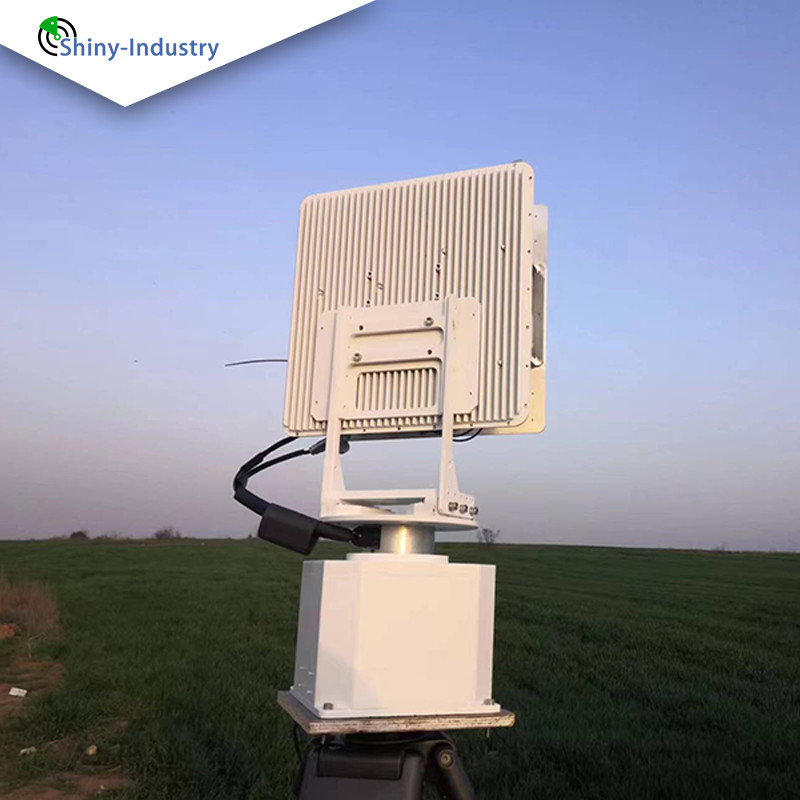

Ground Steel Bracket Or Tripod
Application

Industry, Special Equipment

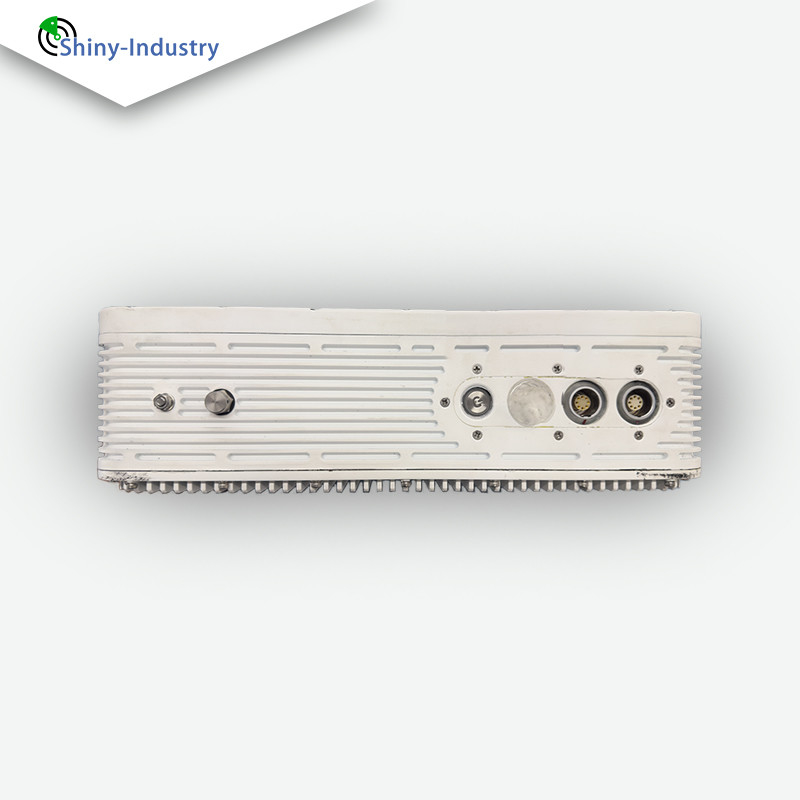

External Interfaces

Rj-45
Power Consumption

≤30W
Communication Protocol

TCP/IP
Transport Package

Aviation Box Packaging
Specification

X Band
Trademark

OME Acceptable
Origin

China
HS Code

8526109090
Supply Ability

100pieces/Year
Customization

Available
Type

Sensor
Usage

Security Warning And Protection
Place of Origin

China
Brand Name

OEM
Certification

ISO
Minimum Order Quantity

10

Long Range Slow Targets Surveillance Radar Full Coverage With Rj45 External Interfaces

button button

Get Price Contact Now

Model NO.	RS3000A
Operating frequency	X Band
Work frequency point	eleven
tracking mode	TWS
Azimuth scan range	Single-sided array phase sweeping ± 45°, by expanding the array, 180°, 270° and 360° phase sweeping can be realized
Pitch coverage	7°
Maximum Detection Range	1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance	≤150m
Target velocity range	0.5m/s~50m/s(1.8km/h~180km/h)

weight	≤12kg
Structural dimensions	350mm350mm105mm
Ingress protection	IP66

Schematic diagram of the work

Schematic diagram of radar multi-array combination

Long Range Slow Targets Surveillance Radar Full Coverage With Rj45 External Interfaces 4

Long Range Slow Targets Surveillance Radar Full Coverage With Rj45 External Interfaces 5

RS3000A The RS3000A radar is a versatile, fully coherent, one-dimensional active phase-scanning, single-pulse two-coordinate instrument. It excels in complex terrains and sea conditions, adeptly detecting pedestrians, vehicles, ships, and more. With extensive field application, its performance remains reliable and stable, meeting the rigorous demands of high cold, humid heat, and salt spray conditions.

Technological Advantages

1) Utilizing active phase scanning technology, this radar achieves seamless azimuth electric sweeping. Compared to traditional mechanical scanning radar, it boasts superior scanning speed, rapid beam direction changes, and exceptional target measurement accuracy.

2) Advanced radar signal processing technology ensures a remarkably low false alarm rate, delivering a pristine monitoring image while accurately detecting and locking onto targets.

3) The radar's pitch beam encompasses a vast angle, enabling simultaneous coverage of ground, sea surface, valleys, hillsides, and more, effectively detecting pedestrians, vehicles, vessels, and wildlife.

4) With adaptable networking capabilities, it effortlessly integrates into existing systems, allowing one display and control terminal to manage multiple radar hosts simultaneously.

5) Each functional component is designed modularly, featuring a clear and simple interface for hassle-free maintenance.

6) Its sophisticated structural layout is light and compact, ensuring ease of transport, deployment, and rapid setup.

7) Featuring user-centric design, the radar is intuitive and practical to operate.

8) With power consumption optimization for all active components, the radar's overall energy usage is minimal, compatible with diverse power sources.

9) Employing fanless thermal equilibrium technology, validated through simulation and physical tests, it thrives in extreme conditions like high temperatures and severe cold.

10) Its fully sealed design meets IP66 standards, offering dustproof, waterproof, and anti-salt spray capabilities, making it ideal for Gobi, desert, and marine environments.

Primarily utilized for border defense and vigilant monitoring of key sites, the radar proficiently tracks individuals, vehicles, ships, and other targets within its operational area, with its main functionalities outlined below:

Efficiently completes search and tracking tasks for pedestrians, moving vehicles, boats, and myriad other targets.

Equipped with online detection, fault diagnosis, fault localization, and temperature monitoring capabilities.

Features self-positioning and orientation capabilities.

Capable of automatic recording and playback of operational status.

Provides guidance information for higher-level systems with collaborative working ability.

Empowered with networking functionality, it achieves coordinated operations across multiple radars.
