Ground Targets Or Drone Detection Surveillance Radar With Multiple Transceiver Channels

Ground Targets Or Drone Detection Surveillance Radar With Multiple Transceiver Channels

  • Model NO.
    RS1500A
  • Installation Mode

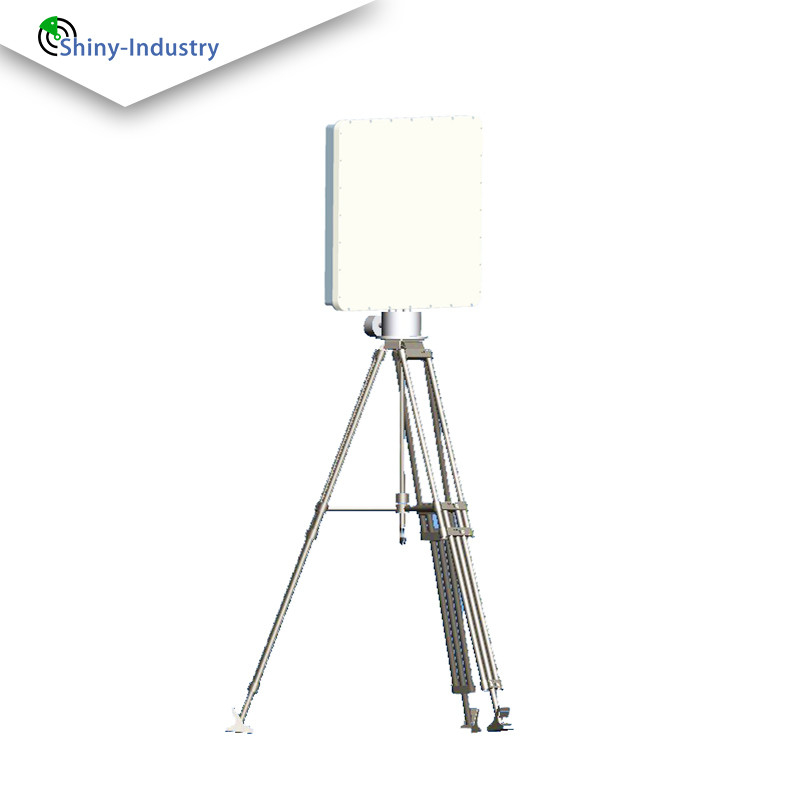

    Ground Steel Bracket Or Tripod
  • Application
    Industry, Special Equipment
  • External Interfaces
    Rj-45
  • Power Consumption
    ≤30W
  • Transport Package
    Aviation Box Packaging
  • Specification
    X Band
  • Trademark
    OME Acceptable
  • Origin
    China
  • HS Code
    8526109090
  • Supply Ability
    100pieces/Year
  • Customization
    Available
  • Type
    Sensor
  • Usage
    Security Warning And Protection
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO
  • Minimum Order Quantity
    10

Ground Targets Or Drone Detection Surveillance Radar With Multiple Transceiver Channels

Basic Information

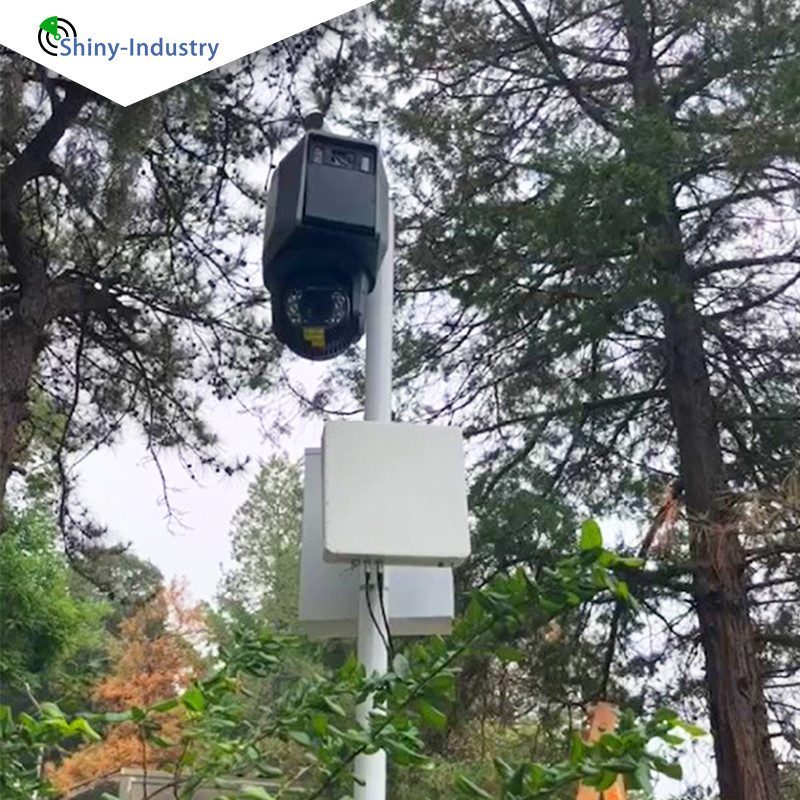

The RS1500A radar products are designed to seamlessly detect moving targets such as people, vehicles, and boats within its field of view. It provides their precise distance, azimuth, and speed data, with the capability to track and report multiple targets concurrently. Utilizing the highly accurate information provided, the radar integrates effortlessly with cameras and various optoelectronic devices for enhanced tracking, precise positioning, definitive identification, and meticulous event recording.
Our radar proves its worth as an active detection powerhouse across diverse environments. Whether it's smart shipping, fishery protection, bridge collision avoidance, ship traffic monitoring, or fishery management, this device excels in water vessel detection. Additionally, it bolsters security and maintenance for crucial infrastructure like substations, detention centers, and oil pipelines. Offering impeccable performance and a competitive price, this sensor integrates seamlessly with cameras, infrared, and other equipment thanks to its open interface, ensuring a comprehensive solution for airport perimeter security, railway safeguarding, highway traffic control, and other traffic facility monitoring and management.



Model NO.RS1500A
Operating frequency24GHz-24.25GHz
Swept bandwidth30MHZ
Data rate3HZ
Azimuth scan range±45°
Pitch coverage15°
Maximum number of objects that can be detected100
Maximum Detection Range1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance≤5m
Target velocity range0.5m/s~35m/s(1.8km/h~126km/h)
Packaging & Deliver
weight≤5kg
Structural dimensions350mm*350mm*55mm

Ingress protectionIP66
Ground Targets Or Drone Detection Surveillance Radar With Multiple Transceiver Channels 0
Radar Working DiagramGround Targets Or Drone Detection Surveillance Radar With Multiple Transceiver Channels 1


Ground Targets Or Drone Detection Surveillance Radar With Multiple Transceiver Channels 2


Ground Targets Or Drone Detection Surveillance Radar With Multiple Transceiver Channels 3Ground Targets Or Drone Detection Surveillance Radar With Multiple Transceiver Channels 4



peculiarity


Features

Primarily engineered for border defense and the security of critical locations, this radar is adept at monitoring personnel, vehicles, ships, and other targets within its designated area. The standout characteristics are as follows:
Multiple Transceiver Channels: Equipped with 3 transmitters and 32 receivers, this Frequency Modulated Continuous Wave (FMCW) radar utilizes a state-of-the-art phased array system.
High Detection Power: Capability to detect pedestrians over a distance exceeding 1,000 meters, and vehicles and boats beyond 2,000 meters.
High Measurement Accuracy: Offers an impressive angle measurement accuracy of 0.3°, coupled with a ranging precision of 2 meters.
   Supports multiple operating frequency bands to effectively mitigate co-channel interference.
   Empowers users with the ability to demarcate defense zones, ensuring effective suppression of false alarms beyond the core area.
   Incorporates advanced machine learning algorithms to enhance the identification and resolution of both large and small targets, providing customers with targeted and convenient screening options.
