Shiny-Control Technology Develop (Beijing) Co., Ltd. 86-010-69458834 makabaka@shiny-control.cn
Surveillance Radar System with Installation Mode of Ground Steel Bracket or Tripod and Consumption Design

Surveillance Radar System with Installation Mode of Ground Steel Bracket or Tripod and Consumption Design

Products - Drone Detection Radar
  • Model NO.
    RS1500A
  • Installation Mode
    Ground Steel Bracket Or Tripod
  • Application
    Industry, Special Equipment
  • External Interfaces
    Rj-45
  • Power Consumption
    ≤30W
  • Transport Package
    Aviation Box Packaging
  • Specification
    X Band
  • Trademark
    OME Acceptable
  • Origin
    China
  • HS Code
    8526109090
  • Supply Ability
    100pieces/Year
  • Customization
    Available
  • Type
    Sensor
  • Usage
    Security Warning And Protection
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO
  • Minimum Order Quantity
    10

Surveillance Radar System with Installation Mode of Ground Steel Bracket or Tripod and Consumption Design

  • Surveillance Radar System with Installation Mode of Ground Steel Bracket or Tripod and Consumption Design
  • Surveillance Radar System with Installation Mode of Ground Steel Bracket or Tripod and Consumption Design
Get Price Contact Now
Basic Information


Model NO.RS1500A
Operating frequency24GHz-24.25GHz
Swept bandwidth30MHZ
Data rate3HZ
Azimuth scan range±45°
Pitch coverage15°
Maximum number of objects that can be detected100
Maximum Detection Range1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance≤5m
Target velocity range0.5m/s~35m/s(1.8km/h~126km/h)
Packaging & Deliver
weight≤5kg
Structural dimensions350mm*350mm*55mm

Ingress protectionIP66
Surveillance Radar System with Installation Mode of Ground Steel Bracket or Tripod and Consumption Design 0
Radar working diagramSurveillance Radar System with Installation Mode of Ground Steel Bracket or Tripod and Consumption Design 1

Surveillance Radar System with Installation Mode of Ground Steel Bracket or Tripod and Consumption Design 2


Surveillance Radar System with Installation Mode of Ground Steel Bracket or Tripod and Consumption Design 3Surveillance Radar System with Installation Mode of Ground Steel Bracket or Tripod and Consumption Design 4


peculiarity

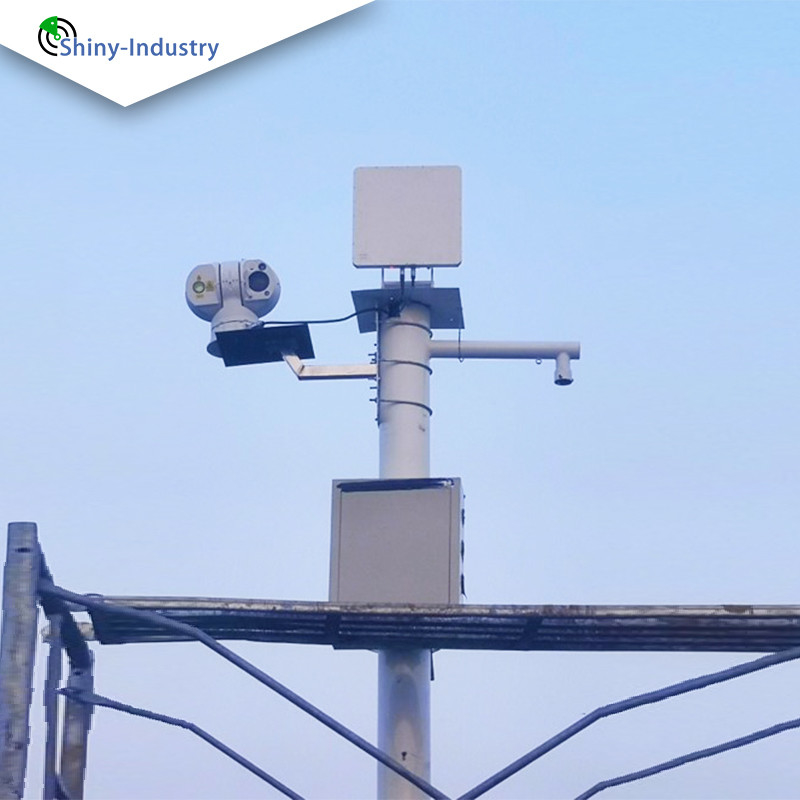

Introducing the cutting-edge RS1500A radar system, a state-of-the-art solution designed to accurately detect and monitor moving targets such as individuals, vehicles, and vessels within its expansive field of view. This advanced system provides precise data on distance, azimuth, and velocity, and excels in simultaneously reporting multiple targets. Seamlessly integrate it with cameras and other optoelectronic devices to enhance tracking, positioning, identification, and event documentation, ensuring a comprehensive surveillance solution.

    Our radar technology offers unparalleled active detection capabilities across diverse applications. From intelligent shipping protocols, fishery safeguarding, and bridge collision prevention to ship flow monitoring and fishery management, this system excels in waterborne vessel detection. It fortifies the security of critical infrastructure like substations, detention centers, and oil pipelines. Additionally, it provides robust perimeter security for airports, comprehensive railway protection, efficient highway traffic management, and supervision of other crucial transportation facilities. With outstanding performance, competitive pricing, and an open interface, this radar sensor effortlessly integrates with cameras, infrared equipment, and other monitoring systems.

Features

Primarily utilized for the vigilant defense and security of critical areas, this system excels in monitoring individuals, vehicles, ships, and other targets. Its standout features include:

Multiple transceiver channels: Equipped with 3 transmitters and 32 receivers, this Frequency Modulated Continuous Wave (FMCW) radar employs a sophisticated phased array system.
High detection power: Capable of detecting pedestrians at distances exceeding 1,000 meters and vehicles and boats at distances over 2,000 meters.

High measurement accuracy: Achieving remarkable precision with angle measurement accuracy down to 0.3° and ranging accuracy within 2 meters.
   Supports multiple operational frequency bands to meticulously avoid co-channel interference, ensuring seamless performance.

   Features a demarcation of defense zones, adeptly minimizing false alarms beyond the core area through effective shielding.

   Incorporates sophisticated machine learning algorithms to adeptly identify and differentiate between large and small targets, empowering customers with targeted screening capabilities.
