X Band Ground Security Radar Detector With Ground Steel Bracket Or Tripod Installation

Model NO.

RS1500A
Installation Mode

Ground Steel Bracket Or Tripod
Application

Industry, Special Equipment
External Interfaces

Rj-45
Power Consumption

≤30W
Transport Package

Aviation Box Packaging
Specification

X Band
Trademark

OME Acceptable
Origin

China
HS Code

8526109090
Supply Ability

100pieces/Year
Customization

Available
Type

Sensor
Usage

Security Warning And Protection
Place of Origin

China
Brand Name

OEM
Certification

ISO
Minimum Order Quantity

10

X Band Ground Security Radar Detector With Ground Steel Bracket Or Tripod Installation

button button

Get Price Contact Now

Model NO.	RS1500A
Operating frequency	24GHz-24.25GHz
Swept bandwidth	30MHZ
Data rate	3HZ
Azimuth scan range	±45°
Pitch coverage	15°
Maximum number of objects that can be detected	100
Maximum Detection Range	1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance	≤5m
Target velocity range	0.5m/s~35m/s(1.8km/h~126km/h)

weight	≤5kg
Structural dimensions	350mm350mm55mm
Ingress protection	IP66

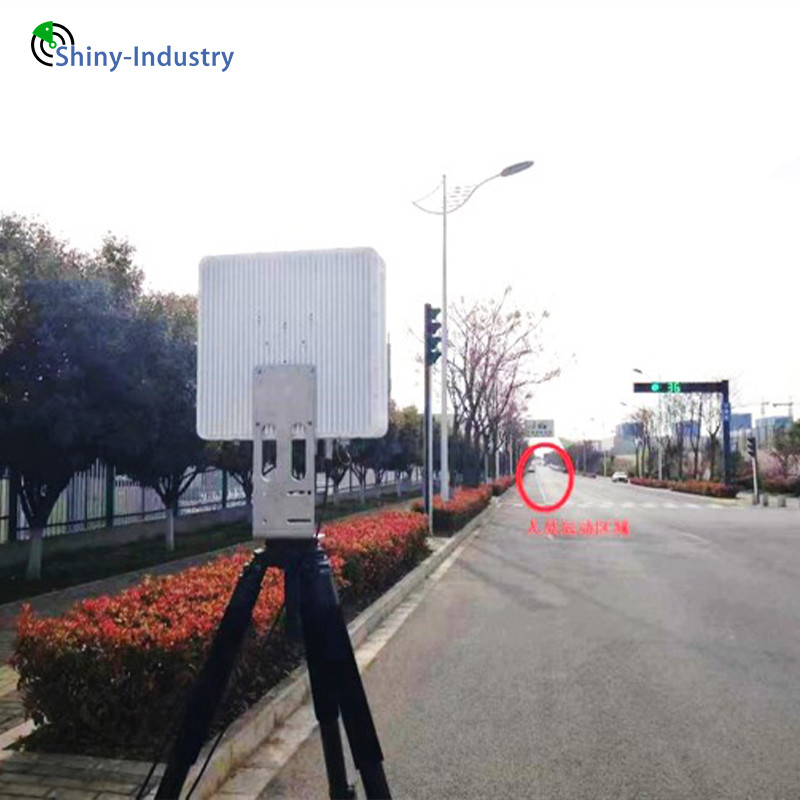

Radar Working Diagram X Band Ground Security Radar Detector With Ground Steel Bracket Or Tripod Installation 1

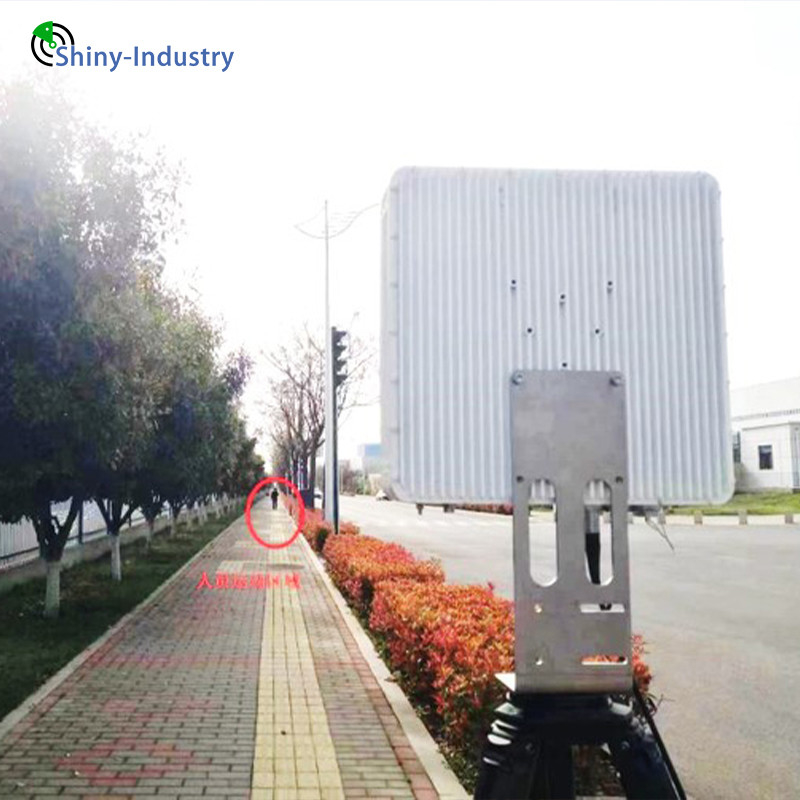

X Band Ground Security Radar Detector With Ground Steel Bracket Or Tripod Installation 3

The RS1500A radar products are masterfully engineered to detect and monitor moving targets such as individuals, vehicles, and boats within the designated field of view. This state-of-the-art radar system meticulously reports crucial data including distance, azimuth, and speed, while simultaneously supporting multiple target reporting. Leveraging the precision of this reported information, it seamlessly integrates with cameras and other advanced optoelectronic devices, enabling efficient tracking, positioning, identification, and event documentation.

Our cutting-edge radar technology excels in proactive detection across multiple environments, enhancing operations in smart shipping, fishery protection, bridge collision prevention, ship flow monitoring, and fishery management—offering unparalleled water vessel detection capabilities. It significantly boosts the security and maintenance of critical infrastructure such as substations, detention centers, and oil pipelines. Furthermore, it fortifies airport perimeter security, supports railway and highway traffic control, and monitors an array of other traffic facilities. Our radar sensor boasts exceptional performance, competitive pricing, and an open interface, ensuring effortless integration with cameras, infrared, and other complementary equipment.

Features

Primarily designed for the robust defense and security of vital areas, this system efficiently monitors personnel, vehicles, ships, and other targets. Its main characteristics include:

Multiple Transceiver Channels: Equipped with an advanced array of 3 transmitters and 32 receivers, this Frequency Modulated Continuous Wave (FMCW) radar operates within a sophisticated phased array system.
High Detection Power: Capable of detecting pedestrians at distances exceeding 1,000 meters, and vehicles and boats at over 2,000 meters.

High Measurement Accuracy: Offers precise angle measurement accuracy reaching as fine as 0.3° and a remarkable ranging accuracy of 2 meters.
Supports multiple operating frequency bands, effectively eliminating co-channel interference.

Facilitates the demarcation of defense zones, expertly minimizing false alarms in non-core areas.

Employs sophisticated machine learning algorithms for the adept identification and resolution of varied target sizes, empowering customers with targeted screening capabilities.
