All In One Low Targets Surveillance Radar Equipment For Ground Monitoring

All In One Low Targets Surveillance Radar Equipment For Ground Monitoring

Products - Drone Detection Radar
  • Model NO.
    RS1500A
  • Installation Mode
    Ground Steel Bracket Or Tripod
  • Application
    Industry, Special Equipment
  • External Interfaces
    Rj-45
  • Power Consumption
    ≤30W
  • Transport Package
    Aviation Box Packaging
  • Specification
    X Band
  • Trademark
    OME Acceptable
  • Origin
    China
  • HS Code
    8526109090
  • Supply Ability
    100pieces/Year
  • Customization
    Available
  • Type
    Sensor
  • Usage
    Security Warning And Protection
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO
  • Minimum Order Quantity
    10

All In One Low Targets Surveillance Radar Equipment For Ground Monitoring

  • All In One Low Targets Surveillance Radar Equipment For Ground Monitoring
  • All In One Low Targets Surveillance Radar Equipment For Ground Monitoring
Get Price Contact Now
Basic Information

Model NO. RS1500A
Operating frequency 24GHz-24.25GHz
Swept bandwidth 30MHZ
Data rate 3HZ
Azimuth scan range ±45°
Pitch coverage 15°
Maximum number of objects that can be detected 100
Maximum Detection Range 1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance ≤5m
Target velocity range 0.5m/s~35m/s(1.8km/h~126km/h)
Packaging & Deliver
weight ≤5kg
Structural dimensions 350mm*350mm*55mm

Ingress protection IP66

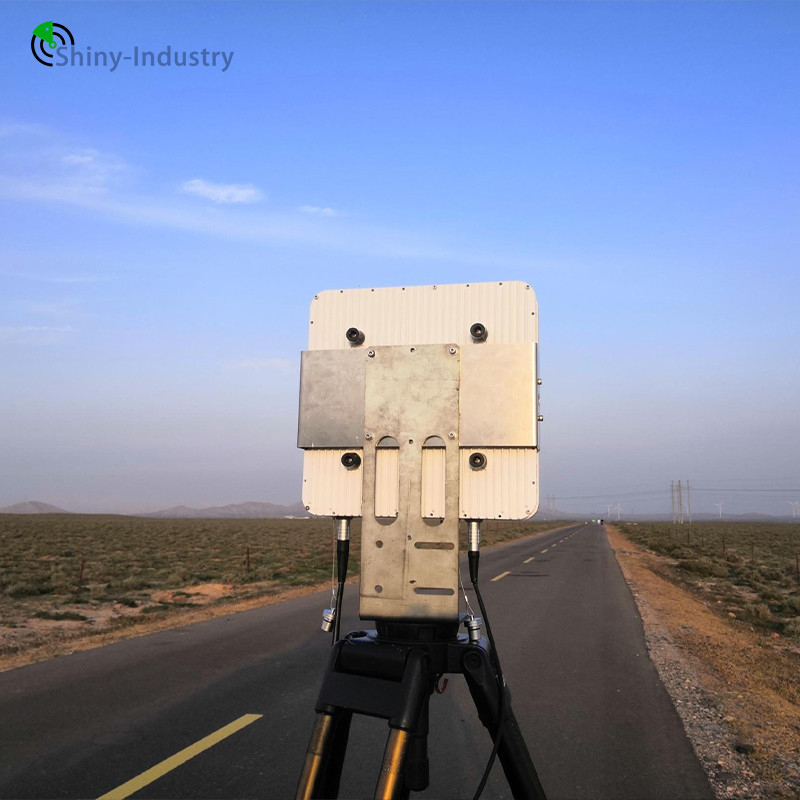

All In One Low Targets Surveillance Radar Equipment For Ground Monitoring 0

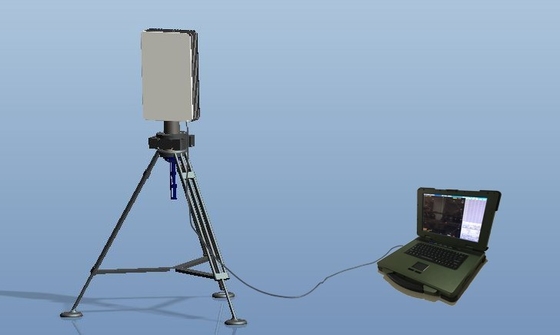

Radar Working DiagramAll In One Low Targets Surveillance Radar Equipment For Ground Monitoring 1

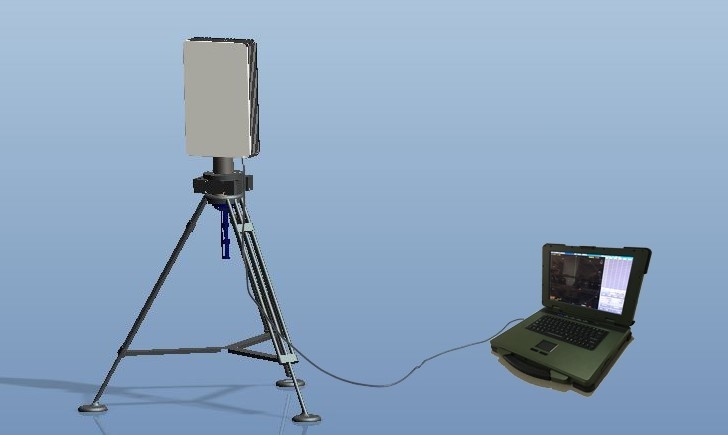

All In One Low Targets Surveillance Radar Equipment For Ground Monitoring 2



All In One Low Targets Surveillance Radar Equipment For Ground Monitoring 3All In One Low Targets Surveillance Radar Equipment For Ground Monitoring 4



peculiarity


The RS1500A radar products serve as unparalleled tools in detecting and monitoring dynamic targets such as individuals, vehicles, and watercraft within their field of view. By accurately reporting crucial data including distance, azimuth, and velocity, these radars can simultaneously manage multiple target reports. Leveraging this precise information, they seamlessly integrate with cameras and other optoelectronic devices, enabling exceptional capabilities in tracking, positioning, identification, and event recording.

    Our radar systems take active detection to the next level across diverse applications. Whether it is enhancing safety in smart shipping, advancing fishery protection, preventing bridge collisions, or managing ship traffic, our radar excels. It offers top-tier security for critical infrastructures such as substations, detention centers, and oil pipelines. Similarly, it ensures robust airport perimeter security, rail and highway traffic control, and surveillance of other transportation facilities. With stellar performance, competitive pricing, and an open interface, it effortlessly integrates with cameras, infrared, and other equipment.

Features Overview

Primarily deployed for border defense and security of critical sites, our radar system excels in monitoring personnel, vehicles, ships, and other targets within the designated area. Key characteristics include:

Advanced Transceiver Channels: Utilizes 3 transmitters and 32 receivers in a sophisticated Frequency Modulated Continuous Wave (FMCW) radar with a phased array system.
Superior Detection Range: Capable of detecting pedestrians from distances exceeding 1,000 meters and vehicles or boats from over 2,000 meters.

Exceptional Measurement Precision: Delivers angle measurement precision of up to 0.3° and ranging accuracy within 2 meters.
   Supports multiple frequency bands to eliminate co-channel interference.

   Features defense zone demarcation to effectively filter out false alarms from non-core areas.

   Integrates advanced machine learning algorithms to enhance the identification and discernment of both large and small targets, allowing for precise, targeted customer screening.
