Shiny-Control Technology Develop (Beijing) Co., Ltd. 86-010-69458834 makabaka@shiny-control.cn
State-Of-The-Art X Band Surveillance Radar Detector For Drone And Ground Security

State-Of-The-Art X Band Surveillance Radar Detector For Drone And Ground Security

Products - Perimeter Surveillance Radar
  • Highlight

    Surveillance Radar Detector For Drone

    ,

    Ground Security Surveillance Radar Detector

  • Model NO.
    RS1500A
  • Installation Mode
    Ground Steel Bracket Or Tripod
  • Application
    Industry, Special Equipment
  • External Interfaces
    Rj-45
  • Power Consumption
    ≤30W
  • Transport Package
    Aviation Box Packaging
  • Specification
    X Band
  • Trademark
    OME Acceptable
  • Origin
    China
  • HS Code
    8526109090
  • Supply Ability
    100pieces/Year
  • Customization
    Available
  • Type
    Sensor
  • Usage
    Security Warning And Protection
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO
  • Minimum Order Quantity
    10

State-Of-The-Art X Band Surveillance Radar Detector For Drone And Ground Security

Get Price Contact Now

State-of-The-Art X Band Surveillance Radar Detector for Drone and Ground Security State-of-The-Art Drone Security System

Basic Information

Model NO. RS1500A
Operating frequency 24GHz-24.25GHz
Swept bandwidth 30MHZ
Data rate 3HZ
Azimuth scan range ±45°
Pitch coverage 15°
Maximum number of objects that can be detected 100
Maximum Detection Range 1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance ≤5m
Target velocity range 0.5m/s~35m/s(1.8km/h~126km/h)
Packaging & Deliver
weight ≤5kg
Structural dimensions 350mm×350mm×55mm

Ingress protection IP66

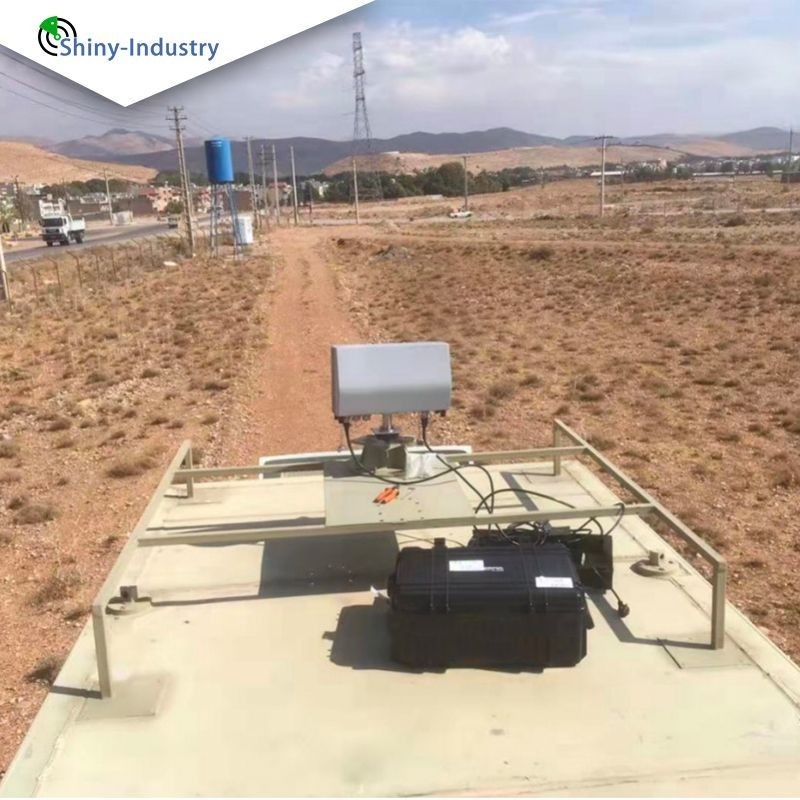

State-Of-The-Art X Band Surveillance Radar Detector For Drone And Ground Security 0

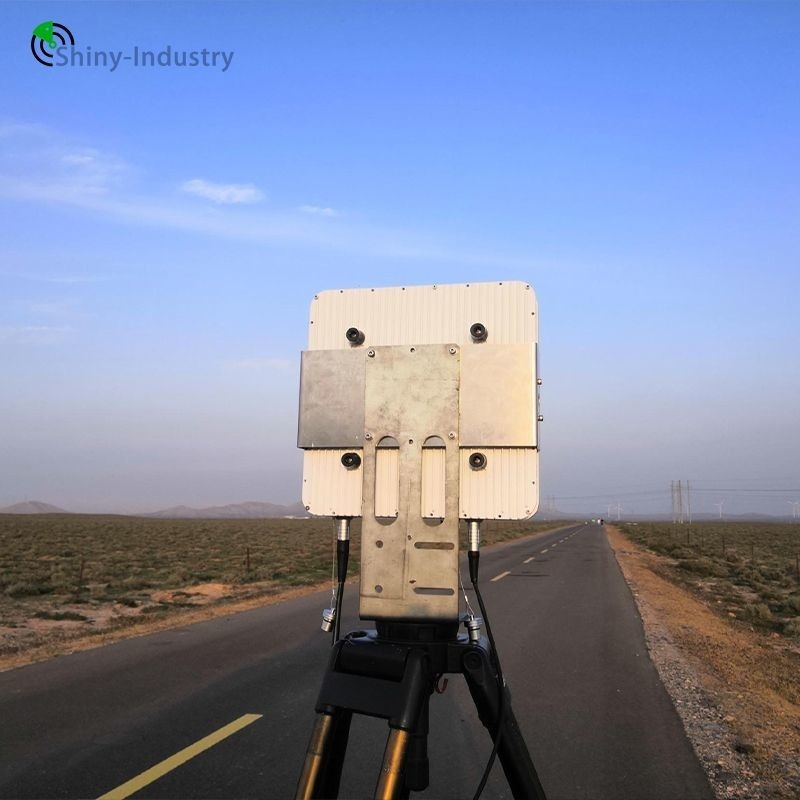

Radar Working DiagramState-Of-The-Art X Band Surveillance Radar Detector For Drone And Ground Security 1

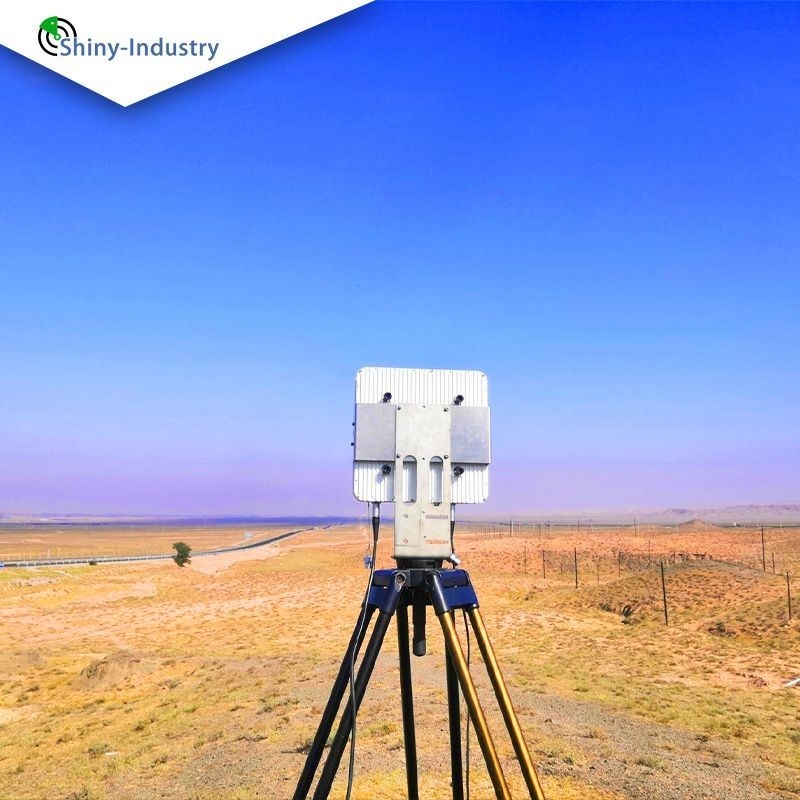

State-Of-The-Art X Band Surveillance Radar Detector For Drone And Ground Security 2

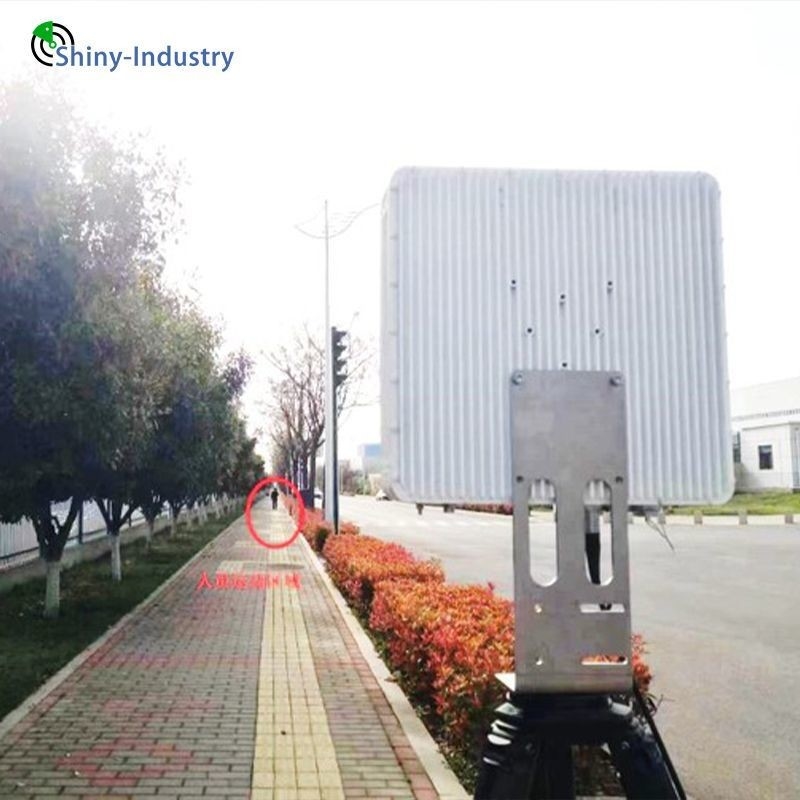

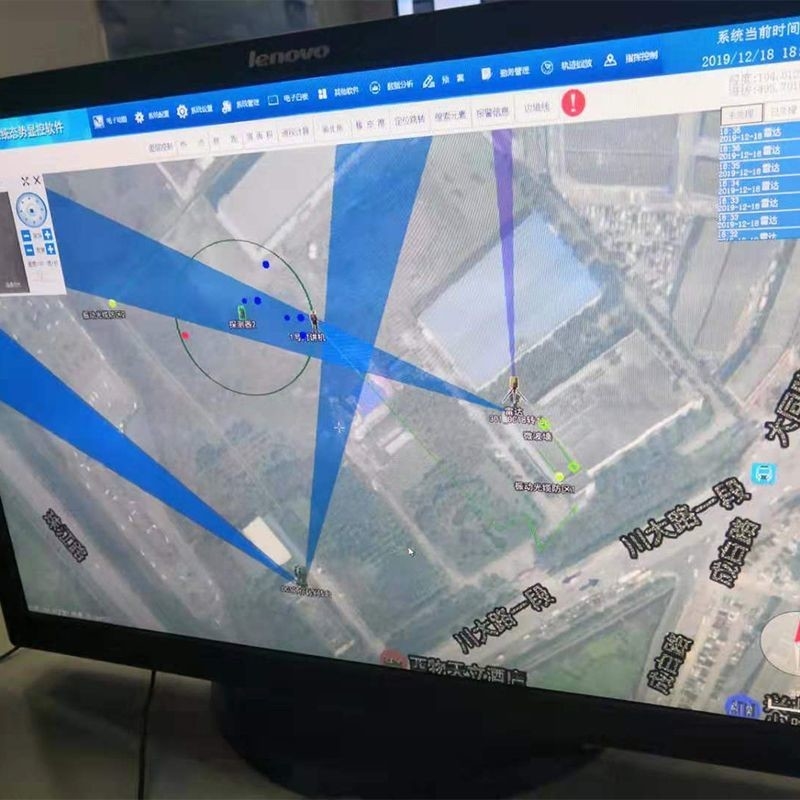

State-Of-The-Art X Band Surveillance Radar Detector For Drone And Ground Security 3State-Of-The-Art X Band Surveillance Radar Detector For Drone And Ground Security 4



peculiarity


The RS1500A radar systems excel in detecting dynamic targets such as individuals, vehicles, and watercraft within its scanning range. It meticulously reports vital data including distance, azimuth, and velocity, while simultaneously monitoring multiple targets. This precise data can seamlessly integrate with cameras and a variety of optoelectronic devices, enhancing capabilities in tracking, positioning, identification, and event logging, thus offering a comprehensive security solution.

Our radar proves invaluable across numerous scenarios, including smart marine navigation, safeguarding fisheries, and preventing bridge collisions. It is adept at monitoring maritime traffic and managing fisheries. On land, it secures key infrastructures like substations, detention centers, and oil pipelines. It also reinforces airport perimeter security, railway safety, highway traffic control, and more. This radar sensor is celebrated for its outstanding performance, competitive pricing, and versatile open interface, seamlessly integrating with cameras and infrared technology to meet diverse security needs.

Features

Primarily designed for fortifying borders and securing critical areas, our radar provides comprehensive monitoring of individuals, vehicles, and vessels in its vicinity. Its defining characteristics include:

Multiple Transceiver Channels: Equipped with an advanced 3-transmitter and 32-receiver Frequency Modulated Continuous Wave (FMCW) radar, enhanced by a phased array system, ensuring superior detection capacities.
High Detection Power: Capable of detecting pedestrians over a distance exceeding 1,000 meters and vehicles or boats over 2,000 meters, ensuring robust security coverage.

High Measurement Accuracy: Delivers exceptional precision with angular measurement accuracy reaching 0.3°, and distance measurement accuracy down to 2 meters, ensuring precise target tracking.
Supports multiple operating frequency bands to effectively mitigate co-channel interference, ensuring uninterrupted operation.

Enables the demarcation of defense zones to effectively minimize false alarms beyond the core monitored area, enhancing security reliability.

Incorporates cutting-edge machine learning algorithms to adeptly identify and discern between large and small targets. This facilitates targeted customer screening, enhancing operational efficiency and accuracy.
