All Weather Ground Control Radar Real Time For People Vehicles Boats Moving Targets

All Weather Ground Control Radar Real Time For People Vehicles Boats Moving Targets

Products - Perimeter Surveillance Radar
  • Highlight

    All Weather Ground Control Radar

    ,

    Real Time Ground Control Radar

  • Model NO.
    RS1500A
  • Installation Mode
    Ground Steel Bracket Or Tripod
  • Application
    Industry, Special Equipment
  • External Interfaces
    Rj-45
  • Power Consumption
    ≤30W
  • Transport Package
    Aviation Box Packaging
  • Specification
    X Band
  • Trademark
    OME Acceptable
  • Origin
    China
  • HS Code
    8526109090
  • Supply Ability
    100pieces/Year
  • Customization
    Available
  • Type
    Sensor
  • Usage
    Security Warning And Protection
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO
  • Minimum Order Quantity
    10

All Weather Ground Control Radar Real Time For People Vehicles Boats Moving Targets

Get Price Contact Now

Versatile All-Weather Ground Monitoring Radar Sensor with Customization Capability and Options

Basic Information

Model NO. RS1500A
Operating frequency 24GHz-24.25GHz
Swept bandwidth 30MHZ
Data rate 3HZ
Azimuth scan range ±45°
Pitch coverage 15°
Maximum number of objects that can be detected 100
Maximum Detection Range 1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance ≤5m
Target velocity range 0.5m/s~35m/s(1.8km/h~126km/h)
Packaging & Deliver
weight ≤5kg
Structural dimensions 350mm×350mm×55mm

Ingress protection IP66
All Weather Ground Control Radar Real Time For People Vehicles Boats Moving Targets 0

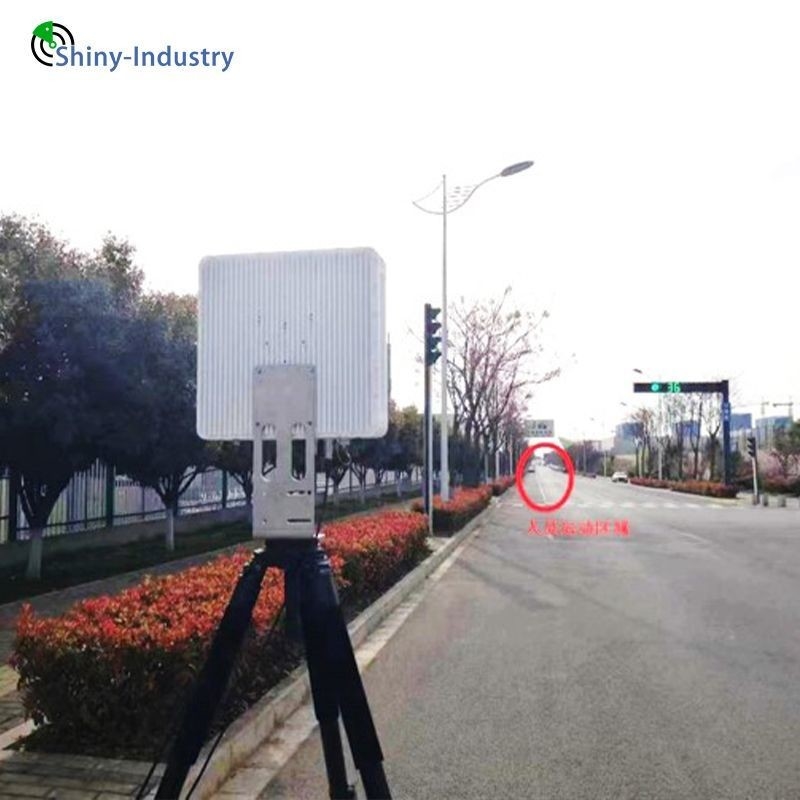

Radar working diagramAll Weather Ground Control Radar Real Time For People Vehicles Boats Moving Targets 1


All Weather Ground Control Radar Real Time For People Vehicles Boats Moving Targets 2



All Weather Ground Control Radar Real Time For People Vehicles Boats Moving Targets 3All Weather Ground Control Radar Real Time For People Vehicles Boats Moving Targets 4



peculiarity


The RS1500A radar products are ingeniously designed to detect moving targets such as people, vehicles, and boats within its field of view. It provides precise reporting on their distance, azimuth, and speed information, and remarkably supports simultaneous multiple target reporting. This extensive and accurate data is seamlessly integrated with cameras and other optoelectronic devices, facilitating advanced tracking and positioning, precise identification, and detailed event recording.

Our radar excels in active detection across diverse domains, including smart shipping, fishery protection, bridge collision prevention, ship flow monitoring, and comprehensive fishery management, effectively handling water vessel detection. It plays a pivotal role in safeguarding infrastructure like substations, detention centers, and oil pipelines. Additionally, it enhances airport perimeter security, and serves traffic facilities with vigilant monitoring and control along railways and highways. The radar sensor stands out with its superb performance, competitive pricing, and open interface, ensuring effortless integration with cameras or infrared equipment.

Features

This versatile radar is primarily utilized for border defense and the security of critical locations. It proficiently monitors personnel, vehicles, ships, and other targets in the designated area, with its main characteristics outlined as follows:

Multiple transceiver channels: Engineered with 3 transmitters and 32 receivers, this Frequency Modulated Continuous Wave (FMCW) radar boasts a sophisticated phased array system.
High detection power: It impressively detects pedestrians over distances exceeding 1,000 meters and vehicles and boats over 2,000 meters.

High measurement accuracy: Achieving an angle measurement accuracy of up to 0.3°, alongside a ranging accuracy of 2 meters, ensuring precise monitoring.
The radar is equipped to support multiple operating frequency bands, adeptly avoiding co-channel interference.

Capable of defining defense zones, it effectively minimizes false alarms originating outside the core protected area.

Incorporating advanced machine learning algorithms, it adeptly identifies and resolves both large and small targets, providing customers with the convenience of targeted target screening.
