Ome X Band Drone Surveillance Radar Detector With Multiple Transceiver Channels

Ome X Band Drone Surveillance Radar Detector With Multiple Transceiver Channels

  • Highlight

    X Band Drone Surveillance Radar Detector

    ,

    Multiple Channels Radar For Drone Detection

  • Model NO.
    RS1500A
  • Installation Mode

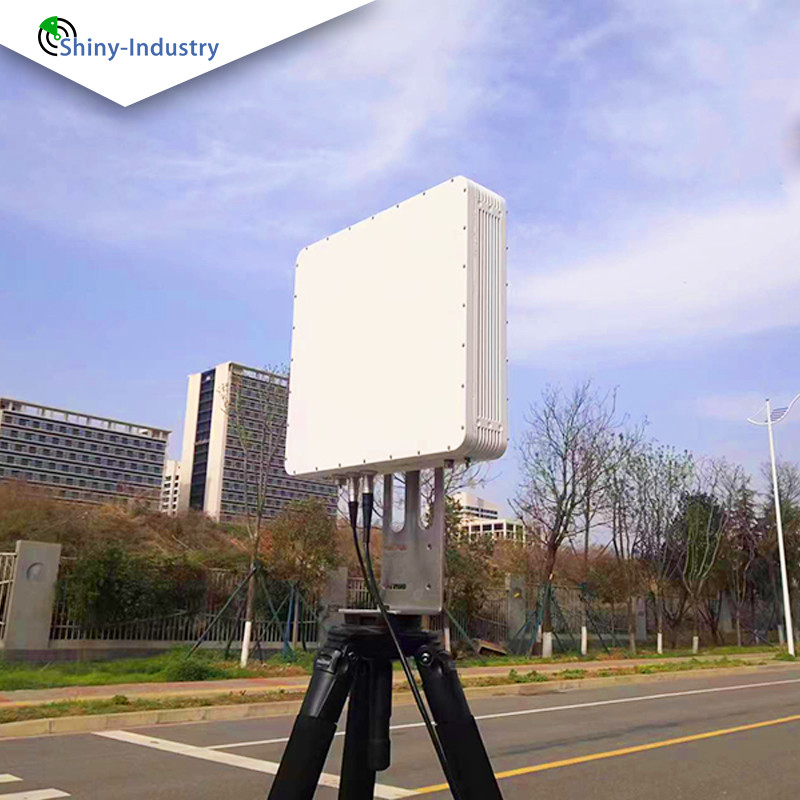

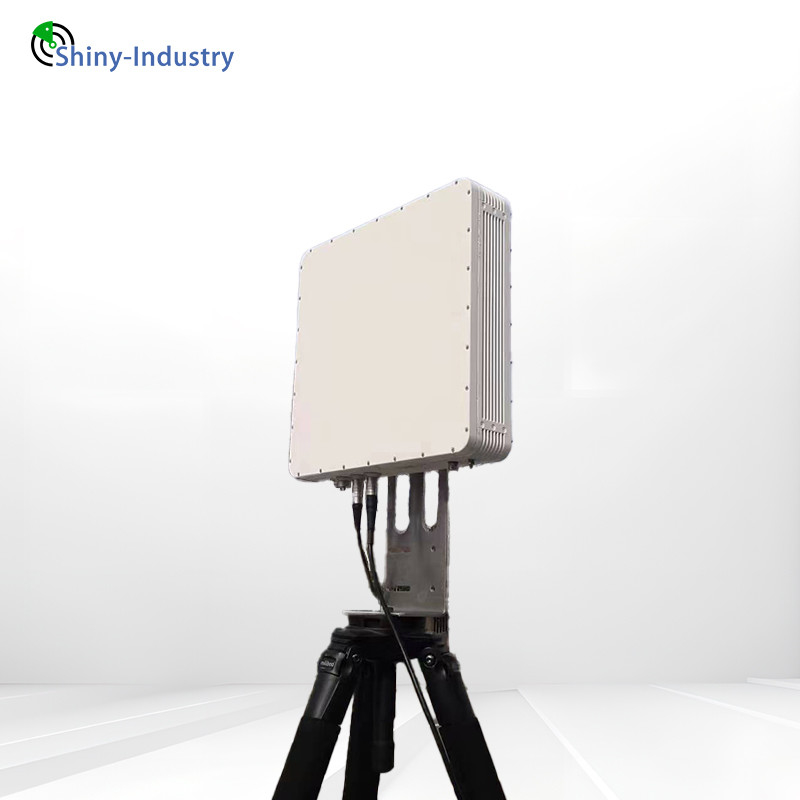

    Ground Steel Bracket Or Tripod
  • Application
    Industry, Special Equipment
  • External Interfaces
    Rj-45
  • Power Consumption
    ≤30W
  • Transport Package
    Aviation Box Packaging
  • Specification
    X Band
  • Trademark
    OME Acceptable
  • Origin
    China
  • HS Code
    8526109090
  • Supply Ability
    100pieces/Year
  • Customization
    Available
  • Type
    Sensor
  • Usage
    Security Warning And Protection
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO
  • Minimum Order Quantity
    10

Ome X Band Drone Surveillance Radar Detector With Multiple Transceiver Channels

RS1500A Ome Surveillance Radar Detector with Ground Steel Bracket or Tripod Installation Mode

Basic Information



RS1500A radar products are engineered to seamlessly detect and track moving targets like individuals, vehicles, and boats within its expansive field of view. It precisely reports the distance, azimuth, and speed of multiple targets concurrently. Leveraging this detailed information, the radar effortlessly integrates with cameras and other optoelectronic devices, enhancing capabilities in tracking, positioning, identification, and event documentation.
Radar systems are designed to offer proactive detection across a diverse range of sectors. Whether enhancing smart shipping solutions, safeguarding fisheries, preventing bridge collisions, or monitoring ship traffic, these radar solutions excel in water vessel detection. They also bolster security in critical infrastructure like substations, detention centers, and oil pipelines. In addition, they provide robust perimeter security at airports, ensure safety along railways, and facilitate dynamic highway traffic control. With outstanding performance, competitive pricing, and an open interface, these radar sensors harmoniously integrate with cameras or infrared devices for superior monitoring.



Model NO.RS1500A
Operating frequency24GHz-24.25GHz
Swept bandwidth30MHZ
Data rate3HZ
Azimuth scan range±45°
Pitch coverage15°
Maximum number of objects that can be detected100
Maximum Detection Range1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance≤5m
Target velocity range0.5m/s~35m/s(1.8km/h~126km/h)
Packaging & Deliver
weight≤5kg
Structural dimensions350mm*350mm*55mm

Ingress protectionIP66
Ome X Band Drone Surveillance Radar Detector With Multiple Transceiver Channels 0
Radar Working DiagramOme X Band Drone Surveillance Radar Detector With Multiple Transceiver Channels 1


Ome X Band Drone Surveillance Radar Detector With Multiple Transceiver Channels 2


Ome X Band Drone Surveillance Radar Detector With Multiple Transceiver Channels 3Ome X Band Drone Surveillance Radar Detector With Multiple Transceiver Channels 4




peculiarity



Features

The radar system is primarily tailored for the robust defense and security of critical locations. It offers comprehensive monitoring of personnel, vehicles, ships, and other targets within designated areas, showcasing the following outstanding characteristics:
Multiple Transceiver Channels: Incorporates a sophisticated setup with 3 transmitters and 32 receivers utilizing Frequency Modulated Continuous Wave (FMCW) radar in a cutting-edge phased array system.
High Detection Power: Capable of detecting pedestrians over distances exceeding 1,000 meters and vehicles and boats beyond 2,000 meters.
High Measurement Accuracy: Achieves remarkable angle measurement accuracy of 0.3° and ranging accuracy of up to 2 meters.
   The system supports multiple operating frequency bands, effectively minimizing the risk of co-channel interference.
   Supports the creation of defense zones, efficiently filtering out false alarms from areas outside the core region.
   Employs advanced machine learning algorithms to facilitate the precise identification and differentiation of large and small targets, enabling customers to selectively screen targets with ease.
