X Band Ground Surveillance Radar System Low Altitude Radar With External Interfaces Rj45

X Band Ground Surveillance Radar System Low Altitude Radar With External Interfaces Rj45

Products - Perimeter Surveillance Radar
  • Highlight

    X Band Ground Surveillance Radar System

    ,

    External Interfaces Rj45 Low Altitude Radar

  • Model NO.
    RS1500A
  • Installation Mode
    Ground Steel Bracket Or Tripod
  • Application
    Industry, Special Equipment
  • External Interfaces
    Rj-45
  • Power Consumption
    ≤30W
  • Transport Package
    Aviation Box Packaging
  • Specification
    X Band
  • Trademark
    OME Acceptable
  • Origin
    China
  • HS Code
    8526109090
  • Supply Ability
    100pieces/Year
  • Customization
    Available
  • Type
    Sensor
  • Usage
    Security Warning And Protection
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO

X Band Ground Surveillance Radar System Low Altitude Radar With External Interfaces Rj45

Get Price Contact Now

Comprehensive Ground Monitoring Technology X Band Surveillance Radar System with External Interfaces Rj-45

Basic Information

Model NO. RS1500A
Operating frequency 24GHz-24.25GHz
Swept bandwidth 30MHZ
Data rate 3HZ
Azimuth scan range ±45°
Pitch coverage 15°
Maximum number of objects that can be detected 100
Maximum Detection Range 1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance ≤5m
Target velocity range 0.5m/s~35m/s(1.8km/h~126km/h)
Packaging & Deliver
weight ≤5kg
Structural dimensions 350mm×350mm×55mm

Ingress protection IP66

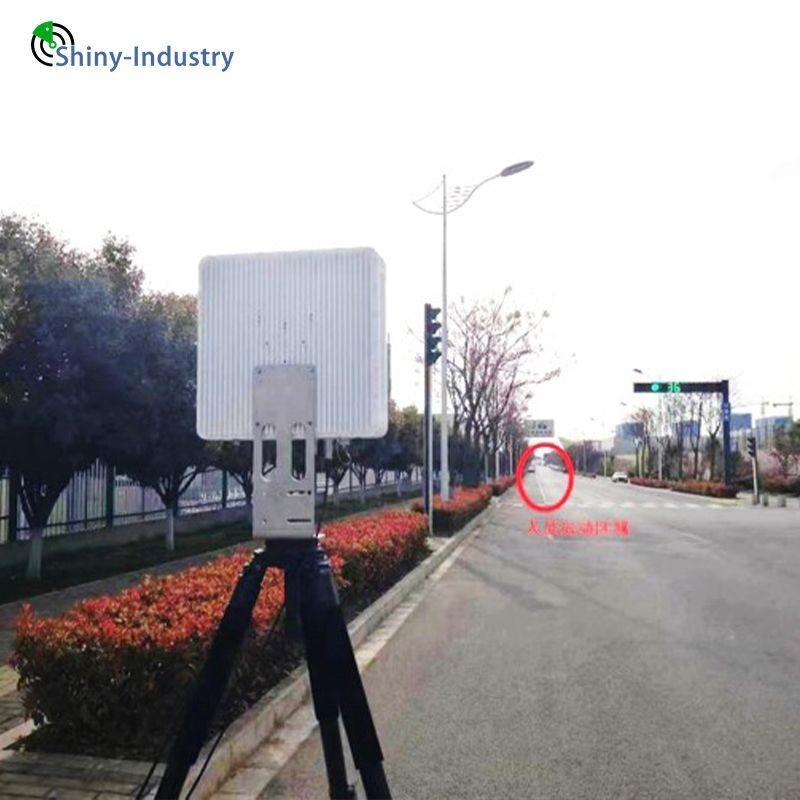

X Band Ground Surveillance Radar System Low Altitude Radar With External Interfaces Rj45 0

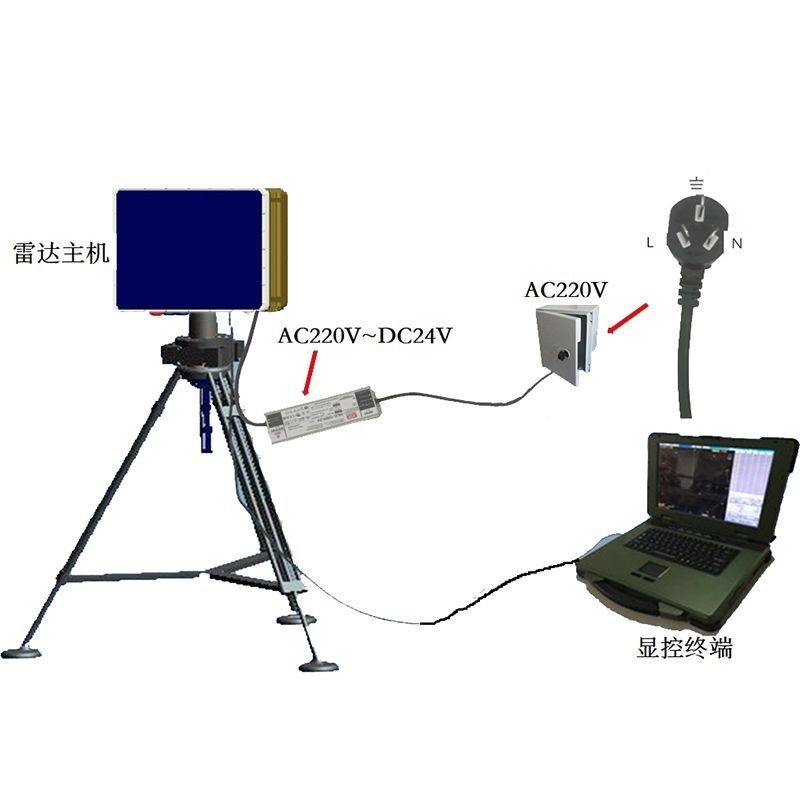

Radar Working DiagramX Band Ground Surveillance Radar System Low Altitude Radar With External Interfaces Rj45 1

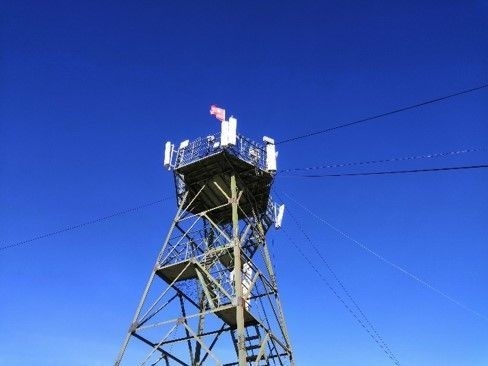

X Band Ground Surveillance Radar System Low Altitude Radar With External Interfaces Rj45 2

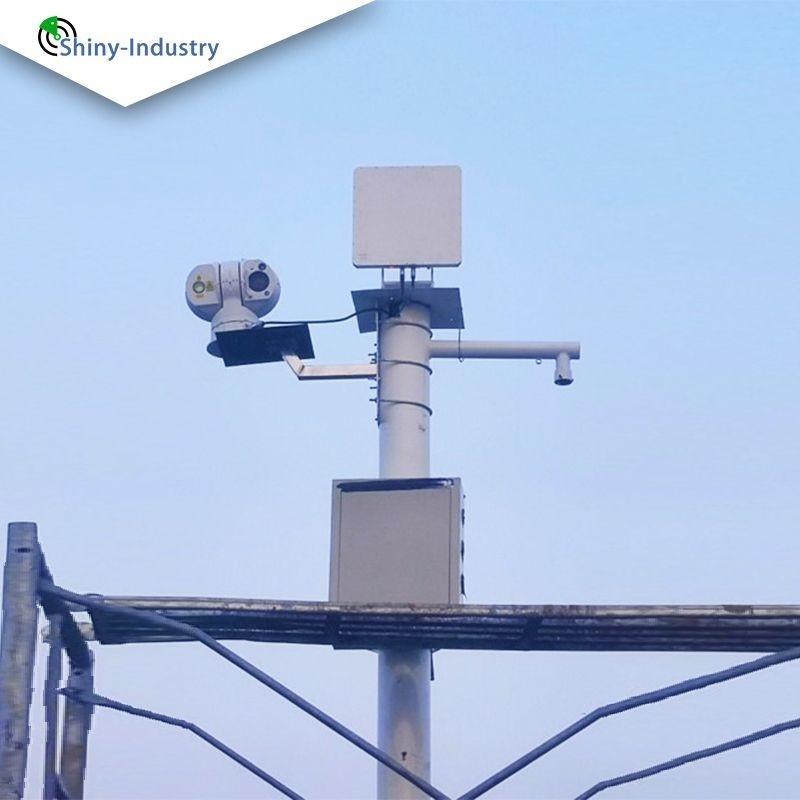

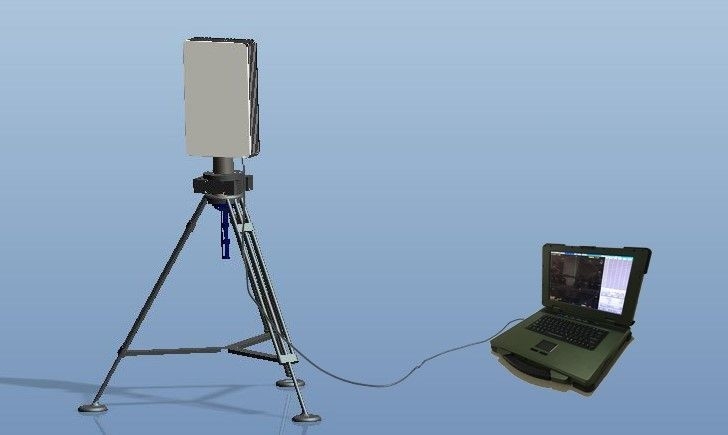

X Band Ground Surveillance Radar System Low Altitude Radar With External Interfaces Rj45 3X Band Ground Surveillance Radar System Low Altitude Radar With External Interfaces Rj45 4



peculiarity


The innovative RS1500A radar products excel in detecting moving targets such as individuals, vehicles, and boats within the designated field of view. It provides precise reports on target distance, azimuth, and speed while adeptly handling multiple targets simultaneously. Leveraging this accurate data, it seamlessly integrates with cameras and other optoelectronic devices for enhanced tracking, positioning, identification, and event recording capabilities.

Radar technology takes center stage in a multitude of applications, offering active detection solutions. It is indispensable in smart shipping, fishery protection, bridge collision prevention, and ship flow monitoring, as well as fishery management and other aquatic vessel detection. Additionally, radar ensures the security and maintenance of vital infrastructure such as substations, detention centers, and oil pipelines. It provides robust perimeter security for airports, reinforces security along railways, and facilitates highway traffic control. The radar sensor is renowned for its superior performance, competitive pricing, and open interface, making it effortlessly compatible with cameras, infrared, and other equipment.

Features

Primarily catering to border defense and key area security, our system effectively monitors individuals, vehicles, ships, and other targets within the vicinity. Key features include:

Multiple Transceiver Channels: Equipped with 3 transmitters and 32 receivers, this Frequency Modulated Continuous Wave (FMCW) radar utilizes a phased array system for superior performance.
High Detection Power: Achieves remarkable detection ranges exceeding 1,000 meters for pedestrians and over 2,000 meters for vehicles and boats.

High Measurement Accuracy: Boasts exceptional angle measurement accuracy of up to 0.3° and a ranging precision of 2 meters.
Supports multiple operating frequency bands to effectively mitigate co-channel interference.

Allows for the demarcation of defense zones, efficiently minimizing false alarms outside the core area.

Incorporates advanced machine learning algorithms to enhance the identification and distinction of both large and small targets, facilitating targeted customer screening.
