Shiny-Control Technology Develop (Beijing) Co., Ltd. 86-010-69458834 makabaka@shiny-control.cn
Ground Security Solutions Perimeter Surveillance Radar / Border Radar System Multiple Channels

Ground Security Solutions Perimeter Surveillance Radar / Border Radar System Multiple Channels

Products - Perimeter Surveillance Radar
  • Highlight

    Ground Security Perimeter Surveillance Radar

    ,

    Multiple Channels Perimeter Surveillance Radar

    ,

    Multiple Channels Border Radar System

  • Model NO.
    RS1500A
  • Installation Mode

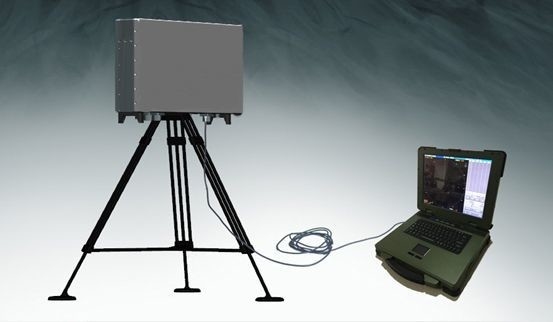

    Ground Steel Bracket Or Tripod
  • Application
    Industry, Special Equipment
  • External Interfaces
    Rj-45
  • Power Consumption
    ≤30W
  • Transport Package
    Aviation Box Packaging
  • Specification
    X Band
  • Trademark
    OME Acceptable
  • Origin
    China
  • HS Code
    8526109090
  • Supply Ability
    100pieces/Year
  • Customization
    Available
  • Type
    Sensor
  • Usage
    Security Warning And Protection
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO
  • Minimum Order Quantity
    10

Ground Security Solutions Perimeter Surveillance Radar / Border Radar System Multiple Channels

Get Price Contact Now
Basic Information
The RS1500A radar products are expertly engineered to detect moving entities such as individuals, vehicles, and watercraft within its expansive field of vision. This sophisticated radar system adeptly reports the precise distance, azimuth, and velocity of detected targets and boasts the capability to manage and relay information on multiple targets concurrently. With such precise data, the radar seamlessly integrates with cameras and a variety of optoelectronic technologies, facilitating comprehensive tracking and positioning, sophisticated identification, and meticulous event recording.

Radar technology takes the lead in diverse detection environments, revolutionizing smart shipping, safeguarding fisheries, preventing bridge collisions, monitoring vessel flow, and managing fishery operations. It ensures the robust security and upkeep of critical infrastructure including substations, detention centers, and oil pipelines. In addition, it fortifies airport perimeter security and optimizes control over railways and highways. Highlighted by exceptional performance, attractive pricing, and an open interface, this radar system harmonizes seamlessly with cameras, infrared, and other devices.

Model NO. RS1500A
Operating frequency 24GHz-24.25GHz
Swept bandwidth 30MHZ
Data rate 3HZ
Azimuth scan range ±45°
Pitch coverage 15°
Maximum number of objects that can be detected 100
Maximum Detection Range 1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance ≤5m
Target velocity range 0.5m/s~35m/s(1.8km/h~126km/h)
Packaging & Deliver
weight ≤5kg
Structural dimensions 350mm×350mm×55mm

Ingress protection IP66

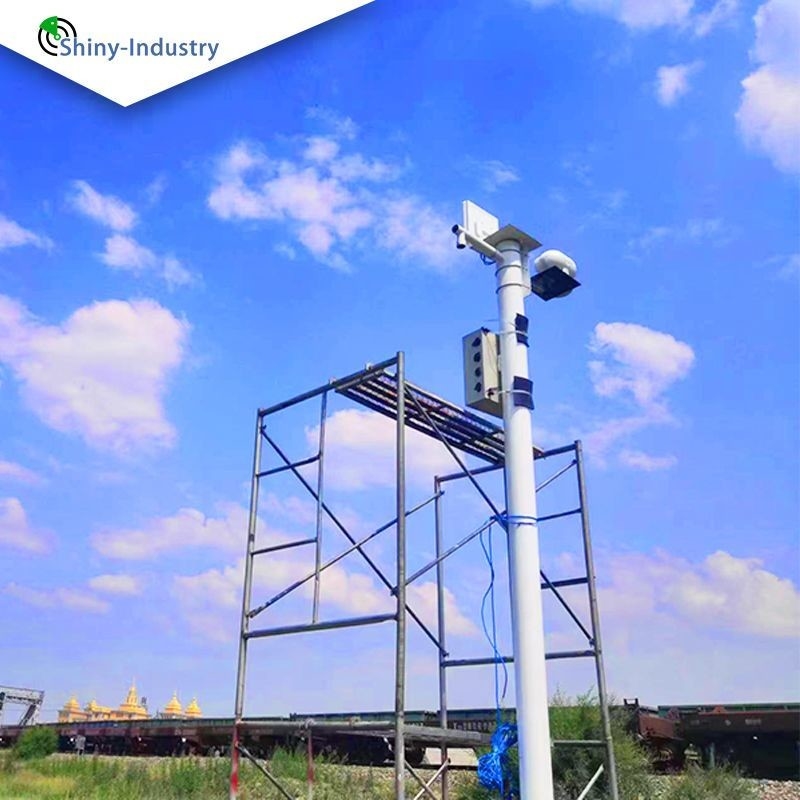

Ground Security Solutions Perimeter Surveillance Radar / Border Radar System Multiple Channels 0

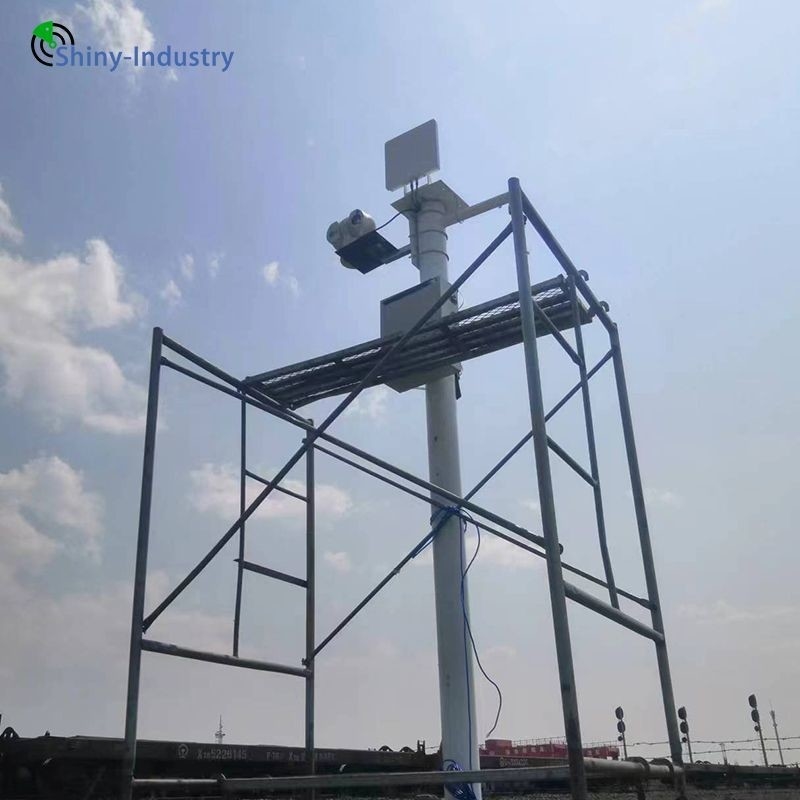

Radar working diagramGround Security Solutions Perimeter Surveillance Radar / Border Radar System Multiple Channels 1

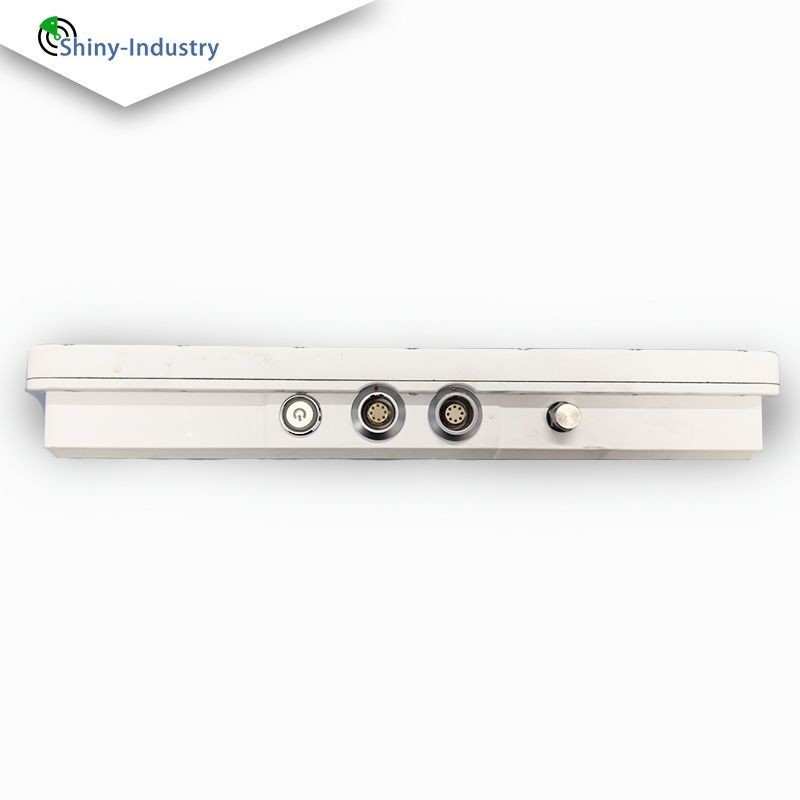

Ground Security Solutions Perimeter Surveillance Radar / Border Radar System Multiple Channels 2

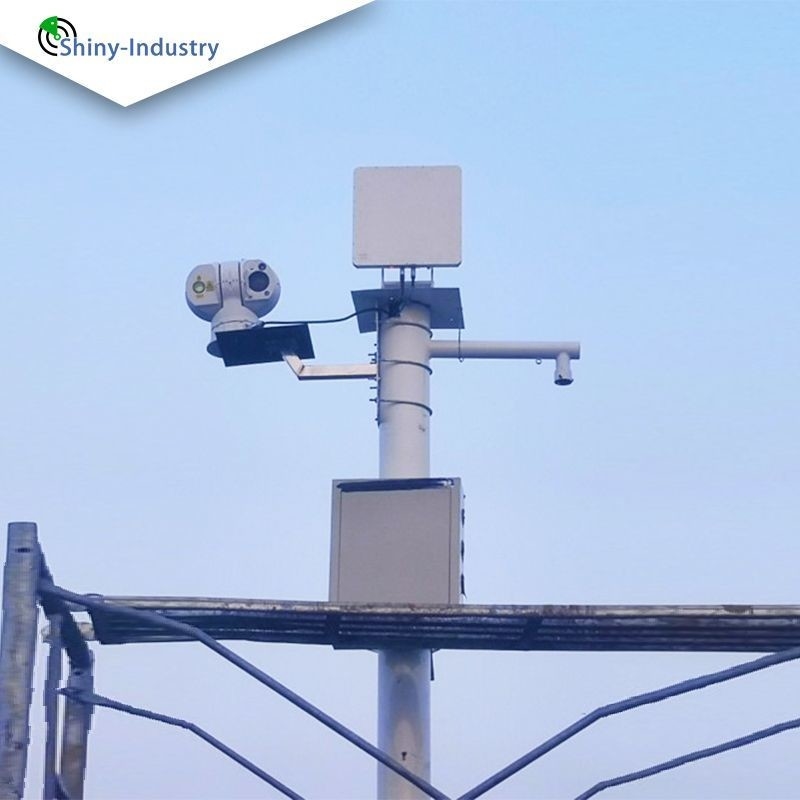

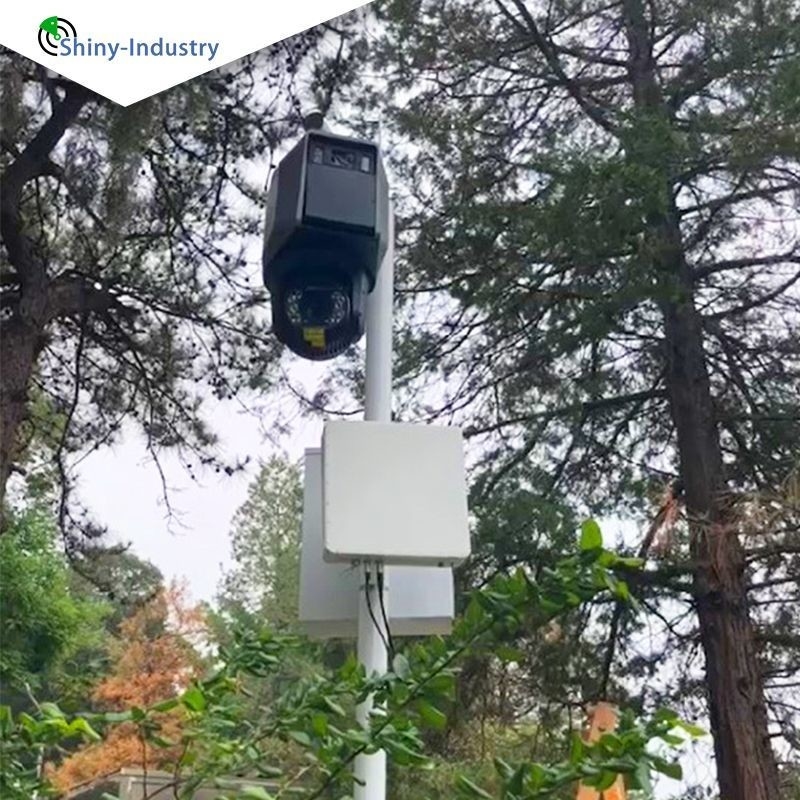

Ground Security Solutions Perimeter Surveillance Radar / Border Radar System Multiple Channels 3Ground Security Solutions Perimeter Surveillance Radar / Border Radar System Multiple Channels 4




Features

Primarily devised for the defense and security of crucial border areas, this advanced radar system specializes in monitoring personnel, vehicles, ships, and other pivotal targets. Its main features are as follows:

Multiple transceiver channels: The system is equipped with 3 state-of-the-art transmitters and 32 receivers utilizing Frequency Modulated Continuous Wave (FMCW) radar technology, complemented by a sophisticated phased array system.
High detection power: Peerless in its class, the radar boasts detection capabilities that exceed 1,000 meters for pedestrian detection and surpass 2,000 meters for vehicles and boats.

High measurement accuracy: Featuring an astounding angular measurement accuracy of 0.3°, alongside a remarkable ranging accuracy of 2 meters.
The system supports a multitude of operating frequency bands, meticulously designed to avert co-channel interference.

The radar is equipped with advanced capabilities to demarcate defense zones effectively, adeptly filtering out false alarms beyond the core area.

Cutting-edge machine learning algorithms enhance the radar's ability to identify and distinguish between large and small targets, empowering customers to perform targeted screening with precision and ease.
