Sensor Based Perimeter Surveillance Radar System With Drone Detection Capability

Sensor Based Perimeter Surveillance Radar System With Drone Detection Capability

Products - Perimeter Surveillance Radar
  • Highlight

    Sensor Based Perimeter Surveillance Radar System

    ,

    Drone Detection Surveillance Radar System

    ,

    X Band Perimeter Surveillance Radar System

  • Model NO.
    RS1500A
  • Installation Mode
    Ground Steel Bracket Or Tripod
  • Application
    Industry, Special Equipment
  • External Interfaces
    Rj-45
  • Power Consumption
    ≤30W
  • Transport Package
    Aviation Box Packaging
  • Specification
    X Band
  • Trademark
    OME Acceptable
  • Origin
    China
  • HS Code
    8526109090
  • Supply Ability
    100pieces/Year
  • Customization
    Available
  • Type
    Sensor
  • Usage
    Security Warning And Protection
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO
  • Minimum Order Quantity
    10

Sensor Based Perimeter Surveillance Radar System With Drone Detection Capability

Get Price Contact Now

Sensor-based Advanced Surveillance Radar System with Drone Detection Capability Ground Steel Bracket or Tripod Installation

Basic Information

Model NO. RS1500A
Operating frequency 24GHz-24.25GHz
Swept bandwidth 30MHZ
Data rate 3HZ
Azimuth scan range ±45°
Pitch coverage 15°
Maximum number of objects that can be detected 100
Maximum Detection Range 1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance ≤5m
Target velocity range 0.5m/s~35m/s(1.8km/h~126km/h)
Packaging & Deliver
weight ≤5kg
Structural dimensions 350mm×350mm×55mm

Ingress protection IP66

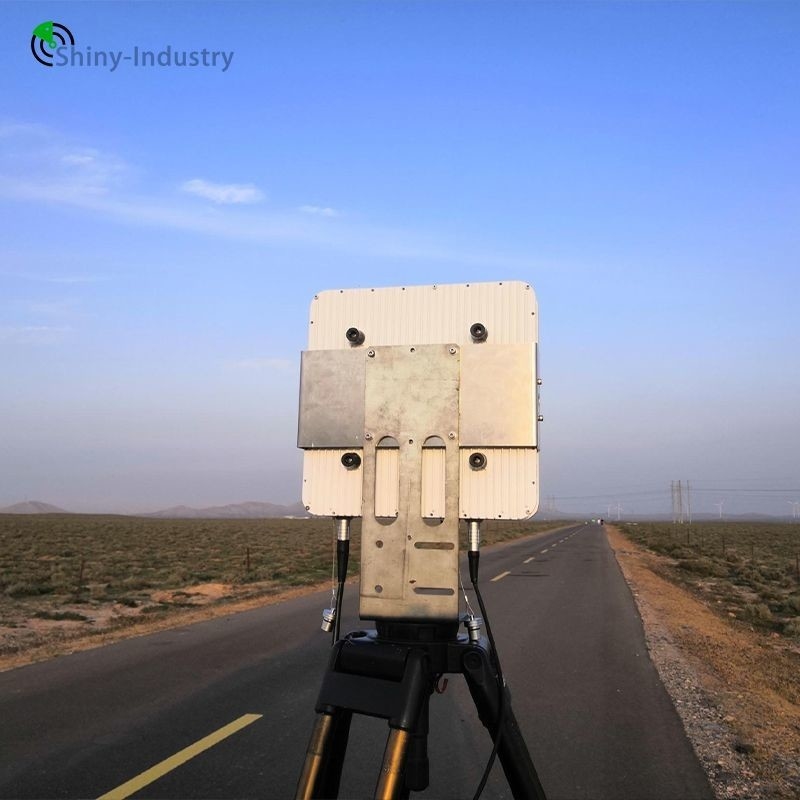

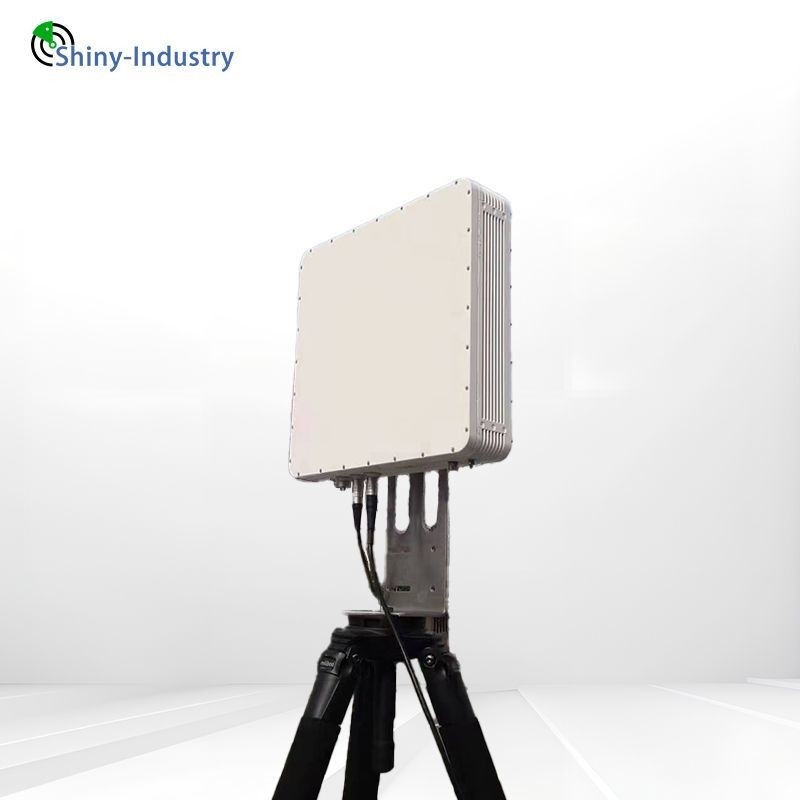

Sensor Based Perimeter Surveillance Radar System With Drone Detection Capability 0

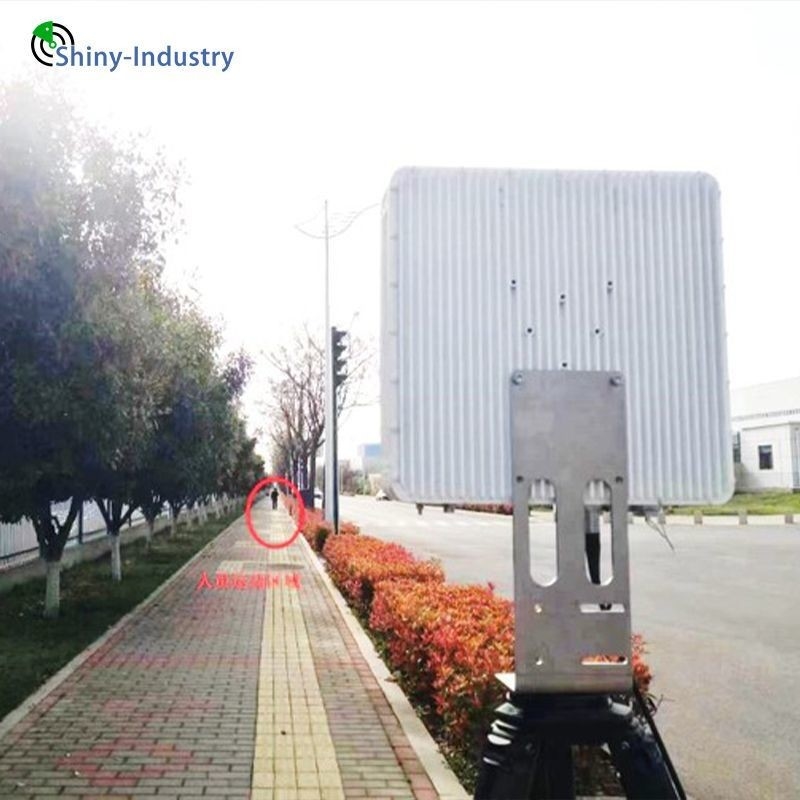

Radar Working DiagramSensor Based Perimeter Surveillance Radar System With Drone Detection Capability 1

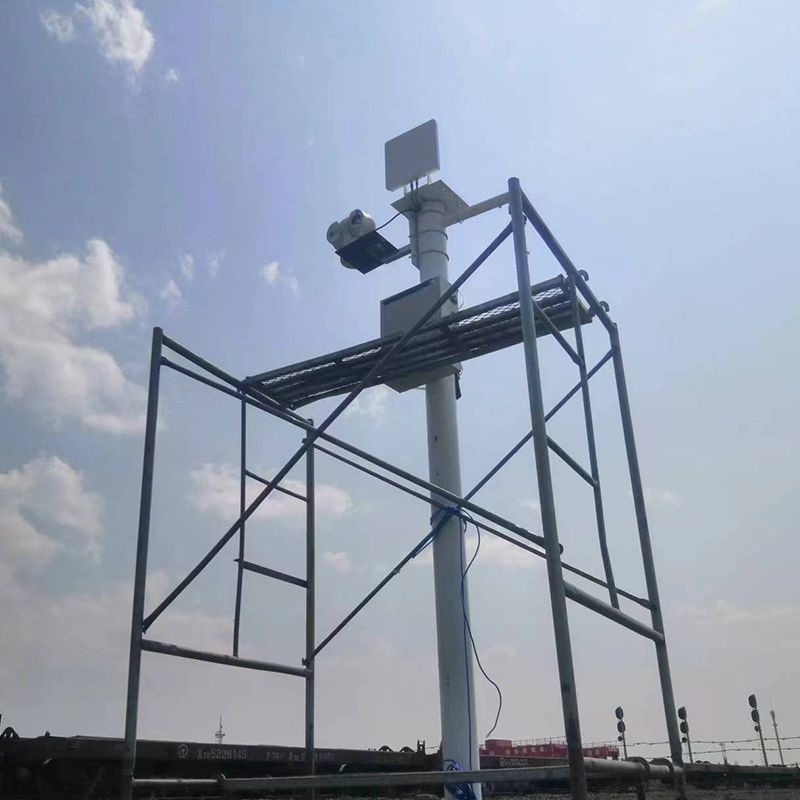

Sensor Based Perimeter Surveillance Radar System With Drone Detection Capability 2

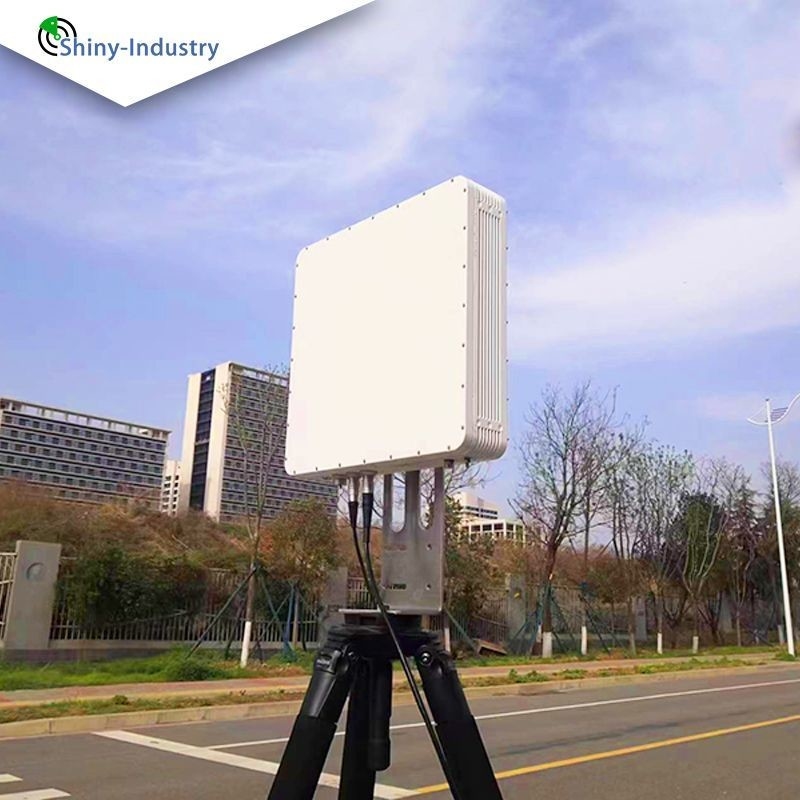

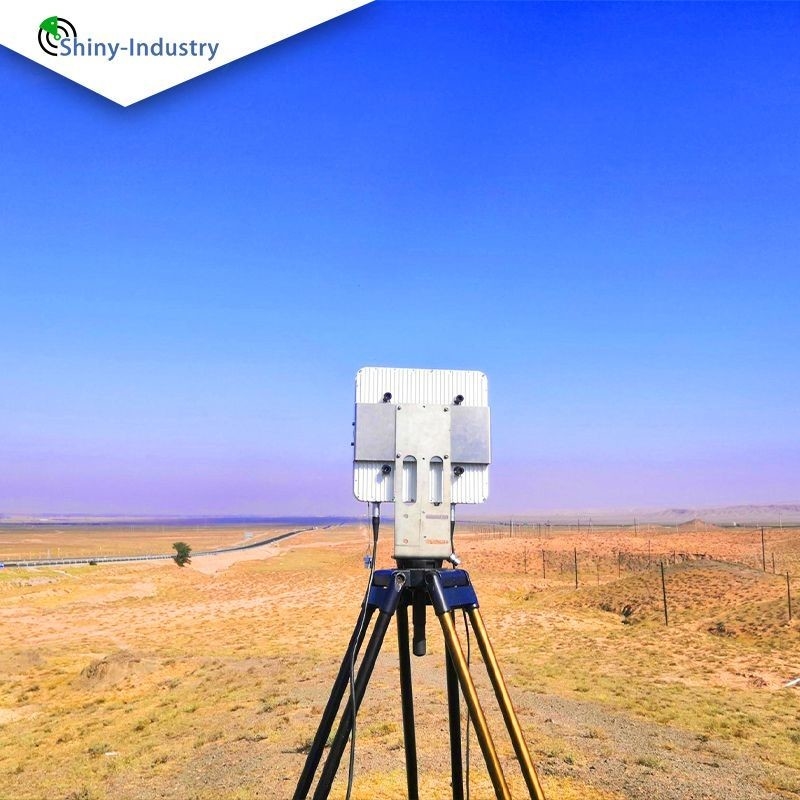

Sensor Based Perimeter Surveillance Radar System With Drone Detection Capability 3Sensor Based Perimeter Surveillance Radar System With Drone Detection Capability 4



peculiarity


The RS1500A radar products possess the remarkable ability to detect an array of moving targets such as individuals, vehicles, and boats within its field of vision. It meticulously reports essential data, including the distance, azimuth, and speed of each target, while supporting the reporting of multiple targets simultaneously. This precise information can be seamlessly integrated with cameras and other optoelectronic devices, enabling advanced tracking, positioning, identification, and event recording.

Our radar system is adept at performing active detection across a diverse range of environments. It excels in smart shipping solutions, fishery protection, bridge collision prevention, and monitoring of ship flow and fishery management. It ensures the secure operation and maintenance of critical infrastructure such as substations, detention centers, and oil pipelines. With its robust capabilities, the radar provides airport perimeter security, railway and highway traffic monitoring, and control of various traffic facilities. The sensor boasts excellent performance, competitive pricing, and an open interface, making it effortlessly compatible with cameras, infrared, and other equipment.

Features

Our radar is primarily engineered for the border defense and security of crucial areas, offering meticulous monitoring of personnel, vehicles, ships, and other targets. Its standout characteristics include:

Multiple Transceiver Channels: Equipped with 3 transmitters and 32 receivers, this Frequency Modulated Continuous Wave (FMCW) radar employs a sophisticated phased array system for superior performance.
High Detection Power: Capable of detecting pedestrians over a remarkable distance exceeding 1,000 meters, and vehicles and boats at more than 2,000 meters.

High Measurement Accuracy: Delivers exceptional precision with an angle measurement accuracy reaching 0.3°, and ranging accuracy at 2 meters.
Supports multiple operating frequency bands to effectively avoid co-channel interference.

Facilitates the demarcation of defense zones to efficiently filter out false alarms beyond the core area, ensuring reliable operation.

Employs advanced machine learning algorithms to adeptly identify and resolve targets of varying sizes, enabling customers to tailor target screening with precision.
