Rj45 External Interfaces Sensor Pulse Doppler Radar Detector For Ground Steel Bracket Or Tripod

Rj45 External Interfaces Sensor Pulse Doppler Radar Detector For Ground Steel Bracket Or Tripod

Products - Perimeter Surveillance Radar
  • Highlight

    Rj45 External Interfaces Radar Detector

    ,

    Sensor Pulse Doppler Detector

    ,

    Ground Steel Bracket Radar Detector

  • Model NO.
    GM0923A006
  • Installation Mode
    Ground Steel Bracket Or Tripod
  • Application
    Industry, Special Equipment
  • External Interfaces
    Rj-45
  • Power Consumption
    ≤30W
  • Transport Package
    Aviation Box Packaging
  • Specification
    X Band
  • Trademark
    OME Acceptable
  • Origin
    China
  • HS Code
    8526109090
  • Supply Ability
    100pieces/Year
  • Customization
    Available
  • Type
    Sensor
  • Usage
    Security Warning And Protection
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO
  • Minimum Order Quantity
    10

Rj45 External Interfaces Sensor Pulse Doppler Radar Detector For Ground Steel Bracket Or Tripod

Get Price Contact Now

Rj-45 External Interfaces Cutting-Edge Sensor Technology Pulse Doppler/Radar Detector for Ground Steel Bracket or Tripod

Basic Information

Model NO. GM0923A006
Working system
Phased array system (azimuth scanning+elevation scanning)/pulse
Doppler
Working band
X Band
Effective detection range
100m~5.0km(UAV)
100m~8.0km(Pedestrian)
100m~10.0km(Vehicle)
Azimuth coverage
360°
Elevation coverage
40°
Detection speed
0.5m/s~75m/s
Azimuth accuracy
≤0.5°
Pitch accuracy
≤1.0°
Distance accuracy
≤10m
Data rate
≥0.2Hz
Data interface
RJ45/1 1CH Ethernet 10/100M port
Input power
≤350W(power dissipation) AC200-AC240(input)
Working temperature
-40ºC~+55ºC
Packaging & Deliver
Weight (N.W)
≤32kg(Whole device with 360° electric rotary)

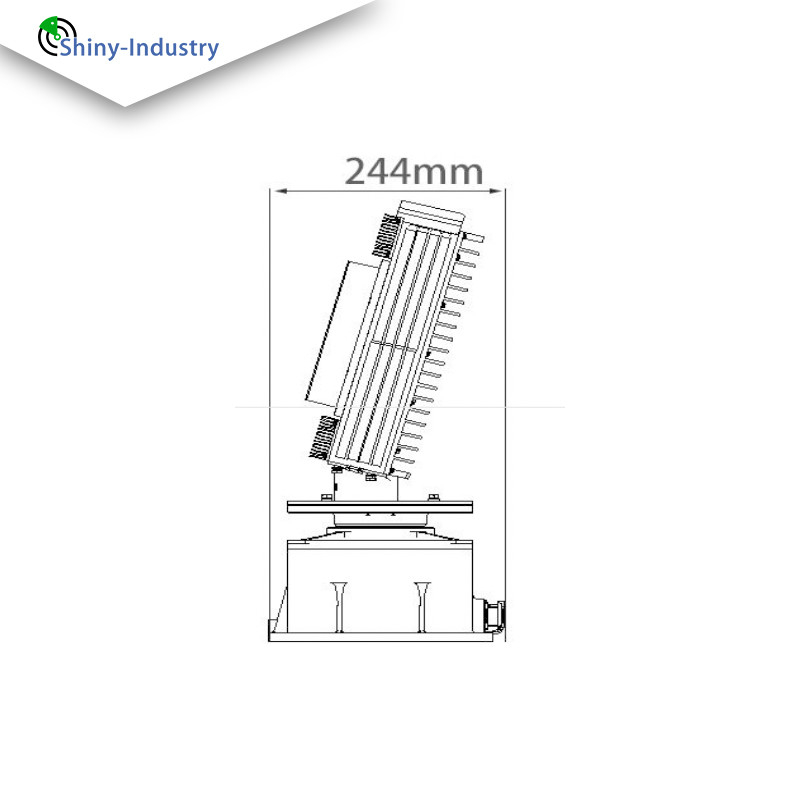

Structural dimensions 812mm*527mm*244mm
Rj45 External Interfaces Sensor Pulse Doppler Radar Detector For Ground Steel Bracket Or Tripod 0

Rj45 External Interfaces Sensor Pulse Doppler Radar Detector For Ground Steel Bracket Or Tripod 1

Rj45 External Interfaces Sensor Pulse Doppler Radar Detector For Ground Steel Bracket Or Tripod 2

Product overview

The GM0923A006 is mainly composed of one radar array, one mechanical turntable, and one power adapter. It is used for the detection, surveillance, and target indication of micro/small civilian drones in key areas such as borders, perimeters and airports. It can accurately provide trajectory information such as target orientation, distance, altitude, and speed.

Rj45 External Interfaces Sensor Pulse Doppler Radar Detector For Ground Steel Bracket Or Tripod 3
Product features:

High real-time and high precision: It can maintain high-precision tracking for long-distance detection targets, providing effective judgment basis for border defense soldiers.

Strong adaptability to the environment: possessing the ability to work 24/7 and adapt to harsh environments such as night, rain, snow, haze, and dust
High flexibility: Long range detection of targets, easy installation
DBF technology: DBF technology can improve anti-interference ability by transmitting multi beam technology
Phased array system: adopting advanced active phased array system to improve radar detection effect and output target coordinate information
High cost-effectiveness: Through continuous improvement of the product, we ensure the detection effect while achieving a perfect combination of product reliability, usability, and economy
Rj45 External Interfaces Sensor Pulse Doppler Radar Detector For Ground Steel Bracket Or Tripod 4
Rj45 External Interfaces Sensor Pulse Doppler Radar Detector For Ground Steel Bracket Or Tripod 5
Rj45 External Interfaces Sensor Pulse Doppler Radar Detector For Ground Steel Bracket Or Tripod 6
Rj45 External Interfaces Sensor Pulse Doppler Radar Detector For Ground Steel Bracket Or Tripod 7Rj45 External Interfaces Sensor Pulse Doppler Radar Detector For Ground Steel Bracket Or Tripod 8
Rj45 External Interfaces Sensor Pulse Doppler Radar Detector For Ground Steel Bracket Or Tripod 9
