Security Warning Maritime Surveillance Radar C Band Phased Array Radar Systems

Highlight

Security Warning Maritime Surveillance Radar
,
C Band Maritime Surveillance Radar
,
Phased Array Marine Surveillance Radar
Model NO.

GM0923A060
Installation Mode

Ground Steel Bracket Or Tripod
Application

Industry, Special Equipment
External Interfaces

Rj-45
Power Consumption

≤30W
Transport Package

Aviation Box Packaging
Specification

C Band
Trademark

OME Acceptable
Origin

China
HS Code

8526109090
Supply Ability

100pieces/Year
Customization

Available
Type

Sensor
Usage

Security Warning And Protection
Place of Origin

China
Brand Name

OEM
Certification

ISO
Minimum Order Quantity

10

Security Warning Maritime Surveillance Radar C Band Phased Array Radar Systems

Name: Security Warning Maritime Surveillance Radar C Band Phased Array Radar Systems
Brand: Shiny-Control Technology Develop (Beijing) Co., Ltd.
Availability: InStock

button button

Get Price Contact Now

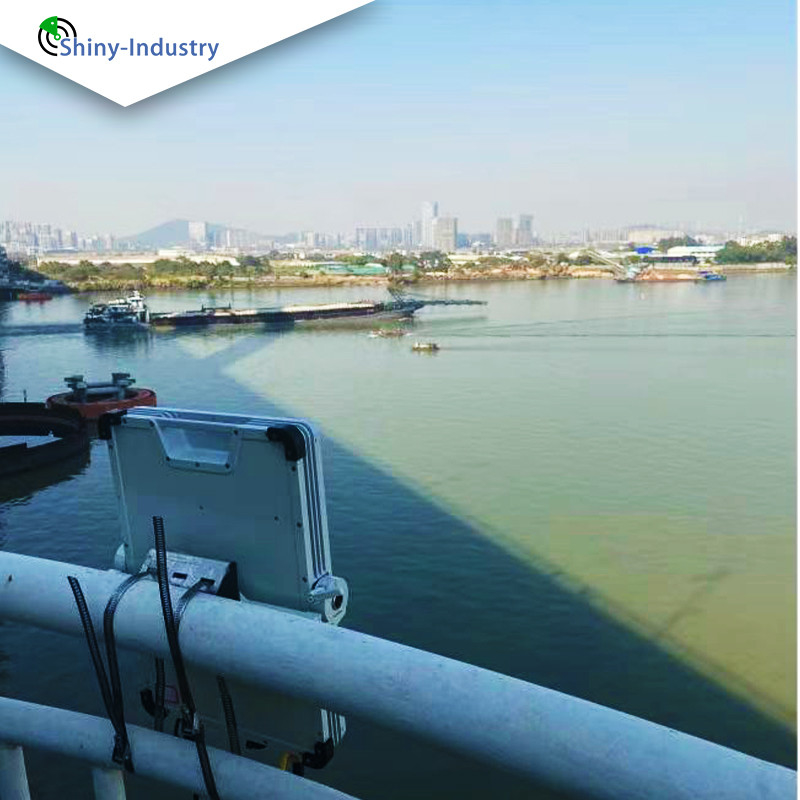

GM0923A060 is an advanced ship monitoring and warning equipment. It is mainly composed of radar array and power adapter, and adopts MIMO and DBF technology to effectively remove false alarm clutter. It is mainly used in ports, waterways, offshore operation areas and inland river areas to monitor ship detection, warning and target indication, and can accurately give target track information, providing strong support for the safety and effective management of maritime traffic.

Model NO.	GM0923A060
Operating frequency band	C-band
Range vessel	3.0km
Working system	Phased array system (azimuth phase scan)/ pulse Doppler
range	3.1km
Effective detection power	100m~3.0km(boat)
Azimuth coverage	>90°
Elevation covering	>9°
Detection velocity	0.5m/s~40m/s
Azimuth accuracy	<1.0°
Pitch accuracy	---
Range accuracy	<10m
Data rate	>2Hz
Data interface	RJ45/1 100 Mbit Ethernet
Power input	<55W(Power consumption) AC220V~240V(input)
Operating temperature	-40°C~+55°C

Weight (N.W)	<5.5kg
Structural dimensions	436mm290mm61mm

Security Warning Maritime Surveillance Radar C Band Phased Array Radar Systems 2

Product features:

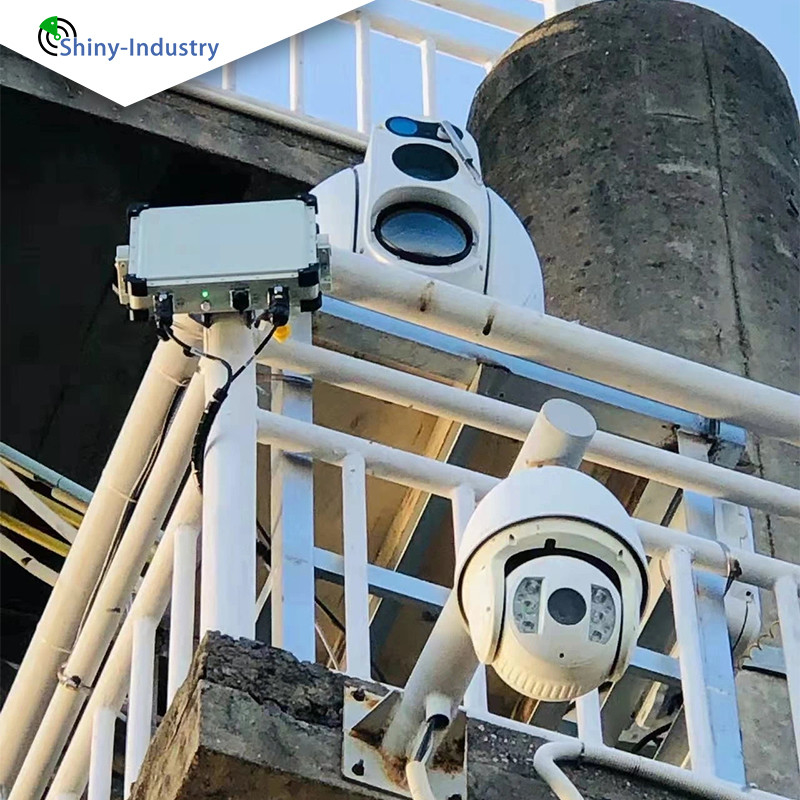

Low weight, low power consumption, universal network interface, etc., has a strong adaptability to the installation environment, generally adapted to the general installation of the hoop or the camera general installation bracket can be easily and quickly installed.

A single radar covers an area of 20 square kilometers, a one-way orientation of 90 degrees, and a 10-meter fishing boat within a radius of 5 kilometers, which can carry out multiple radar series arrays in complex environments to achieve multi-angle coverage without dead corners.

MIMO system radar data rate can reach up to 9Hz, so that the radar photoelectric linkage is more stable and continuous, so that users have a better experience.

DBF technology can improve anti-interference ability by transmitting multi-beam technology.

High real-time sensitivity, fast tracking speed, high accuracy, high data rate, and obvious trajectory tracking.

7*24h all-weather real-time protection, adapt to night, rain and snow, haze, dust and other harsh environment
