Professional Urban Forestry Fire Circuit Safety Inspection Drone Uav

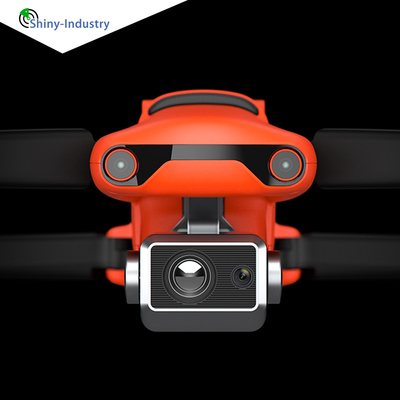

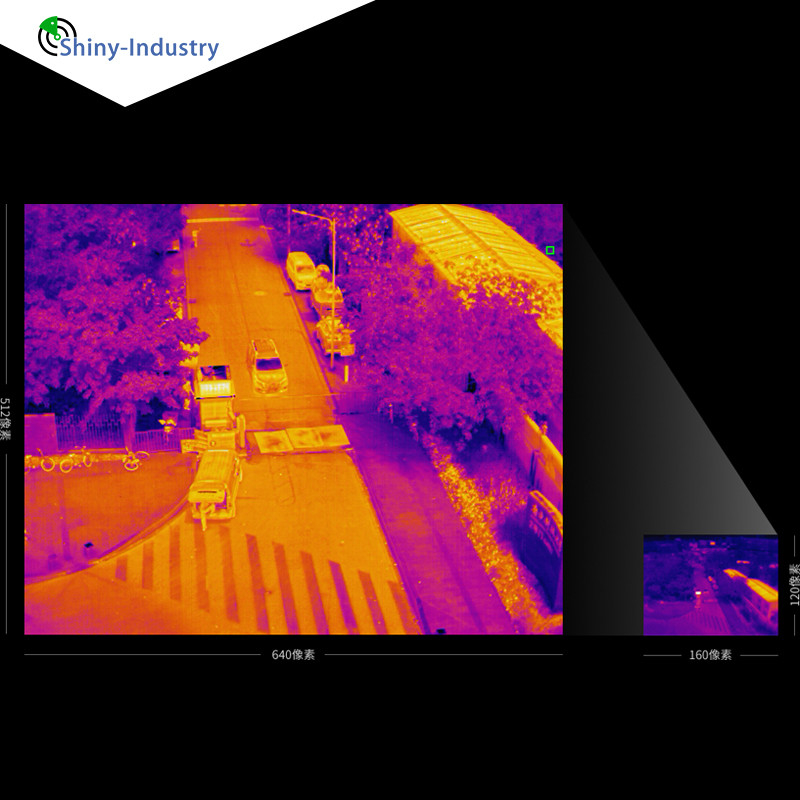

The 640TV3 is a high-resolution thermal imaging portable folding UAV. It adopts a new generation of DTT infrared thermal imaging camera with a resolution of up to 640*512@25FPS to easily identify distant targets, which greatly improves the scene adaptability and picture clarity of industrial UAs when searching for moving objects. For fire, search and rescue, law enforcement, energy, mapping and other applications to bring more advanced and intelligent operating experience.
| Weight (including paddle and battery) | 1209g |
| Maximum take-off weight | 1999g |
| Dimensions (including blade) | 230*130*108mm (folding) 457*558*108mm (unfolded) |
| wheelbase | 397mm |
| Aircraft battery capacity | 7100 mAh |
| Maximum ascent speed | 8 m/ (s Fury mode) |
| Maximum descent speed | 4 m/ (s Fury mode) |
| Maximum horizontal flight speed | 20m/ (s Fury mode) |
| Maximum take-off altitude | 7000m |
| Maximum flight time (no wind) | 38 minutes |
| Maximum hover time (no wind) | 33 minutes |
| Maximum range (no wind) |
22km
|
| Maximum wind resistance | Take-off and landing stage: 12m/s |
| Operating ambient temperature |
-10°C~ 40°C
|
| Operating frequency | 902-928MHz (national support only within the scope of FCC certification) 2.400 to 2.4835 GHz 5.725 to 5.850 GHz |
| Maximum effective signal distance (no interference, no occlusion) | FCC:15km; CE:8km |
