Tracker SDH100 | Portable K-Band AESA Radar for Low-SWaP Air & Ground Surveillance
The Tracker SDH100 is a compact, low-SWaP K-band FMCW phased array radar delivering all-weather beyond-line-of-sight (BLOS) 4D detection of aerial and ground targets. Capable of tracking nano drones from 500m, vehicles up to 4km, and humans at 2.2km, it offers high-refresh-rate precision guidance for optical and countermeasure systems.
Key Features
- Compact and lightweight design (only 3kg)
- Rapid deployment in under 3 minutes
- All-weather operation with 4D detection capability
- High-refresh-rate precision tracking
- Supports portable, vehicle-mounted, airborne, and fixed-site operations
- RF-stealth design with 100°×45° field of view
- Multi-node networking capability
Technical Specifications
| Attribute |
Value |
| Detection Accuracy |
High |
| Size |
Compact And Lightweight |
| Installation |
Can Be Mounted On A Pole Or Tripod |
| Communication Interface |
Ethernet |
| Communication Protocol |
TCP/IP |
| Frequency Range |
2.4 GHz - 5.8 GHz |
| Specification |
C Band |
| Detection Angle |
360 Degrees |
| Antenna Type |
Phased Array |
| Application |
Industry, Special Equipment |
| Detection Range |
Up to 5 km |
| Antenna Gain |
20 dBi |
| Detection Mode |
Pulse Doppler |
Applications
Designed for high mobility and rapid response across complex environments, the Tracker SDH100 provides cost-effective, continuous air-ground awareness for defense and security applications including:
- Critical area protection
- Convoy security
- UAV collision avoidance
- Integration with automated C-UAS solutions like SkyShield

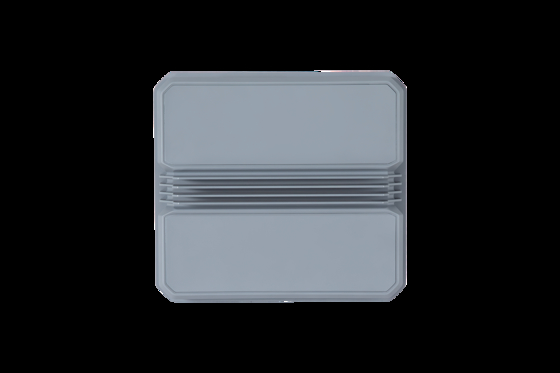

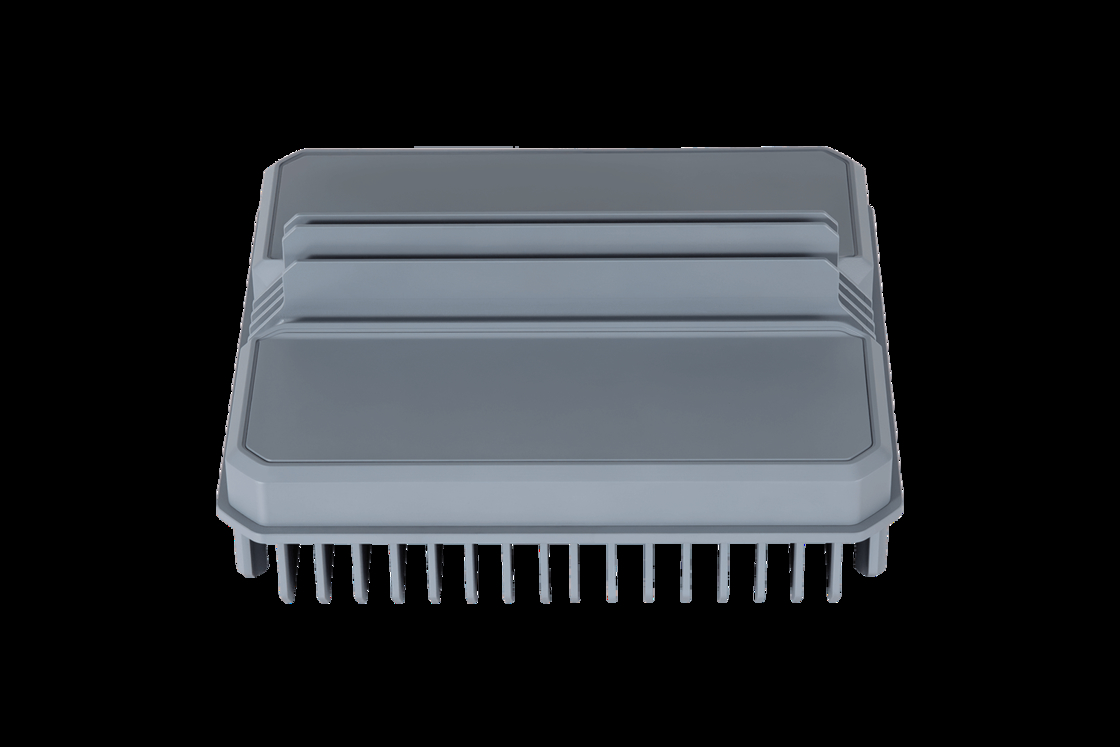

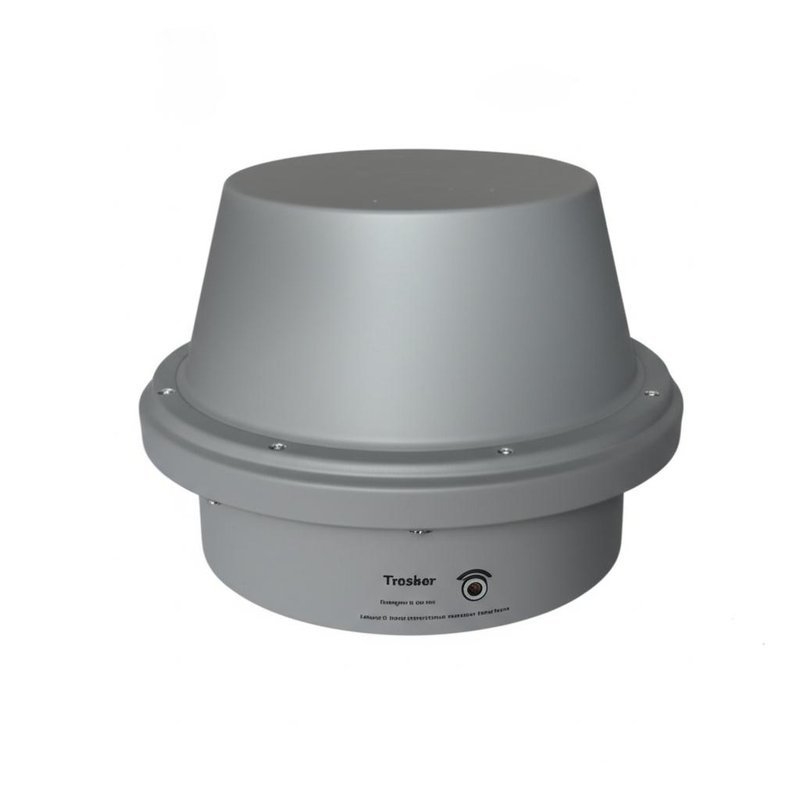

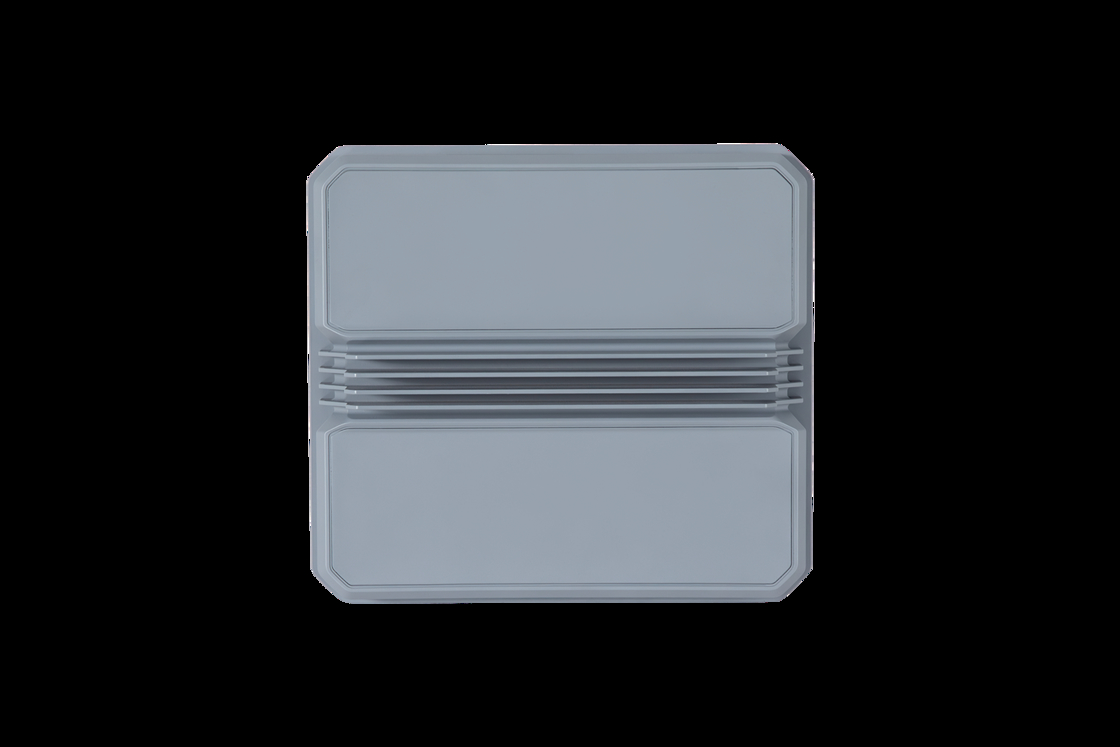

Product Images
