SFL100 | Multi-Layered Drone Detection & Jamming System for 5km C-UAS Protection
Key Specifications
| Attribute |
Value |
| Communication Protocol |
TCP/IP |
| Range |
Up To 5km |
| Weather Resistance |
IP66 Rated |
| Detection Modes |
Continuous Wave, Pulse Doppler |
| Weight |
25 kg |
| Target Size |
Small drones (up to 1m) |
| Tracking Capability |
Tracks Up To 100 Drones Simultaneously |
| Operation Temperature |
-40°C to +60°C |
| Consumption |
≤1000W |
| Detection Accuracy |
Within 1 meter |
| Target Detection |
Small Drones |
| Specification |
Ku Band |
| Communication Interface |
Ethernet |
| Installation |
Wall-mounted or tripod-mounted |
System Overview

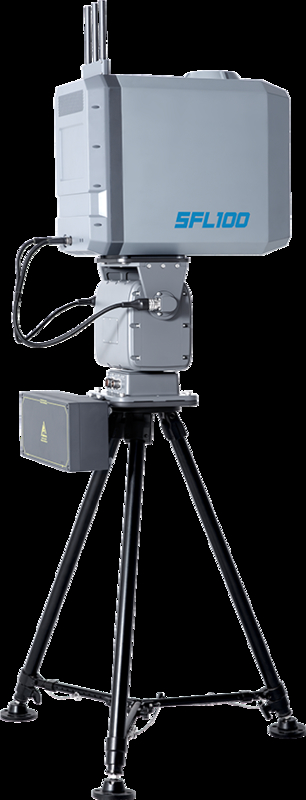

The SFL100 is an advanced counter-drone system providing comprehensive protection through RF detection, protocol analysis, and precision jamming capabilities. This multi-layered defense solution detects unauthorized UAVs within a 5km radius via full-band RF scanning (400MHz-6GHz) and accurately locates both drone and pilot positions within 3km through sophisticated protocol decoding.
Key Features
- Supports detection of over 400 commercial and custom drone models
- Intelligent jamming strategies tailored to drone type and distance
- Disrupts control, video, and GNSS signals up to 3km
- Minimizes collateral impact while effectively neutralizing threats
- Operational in extreme temperatures (-40°C to +60°C)
- IP67-rated rugged construction for harsh environments
- On-the-move operation capability
Applications
Ideal for fixed-site installations, mobile deployments, and rapid-response scenarios. The SFL100 delivers scalable, adaptive protection for:
- Critical infrastructure facilities
- Public venues and events
- Border security operations
- Military installations
- Government facilities
